MPN: VHLPX1-23-1WH/C
BRAND: CommScope
PRODUCT TYPE: Base Antenna
SKU: 12836

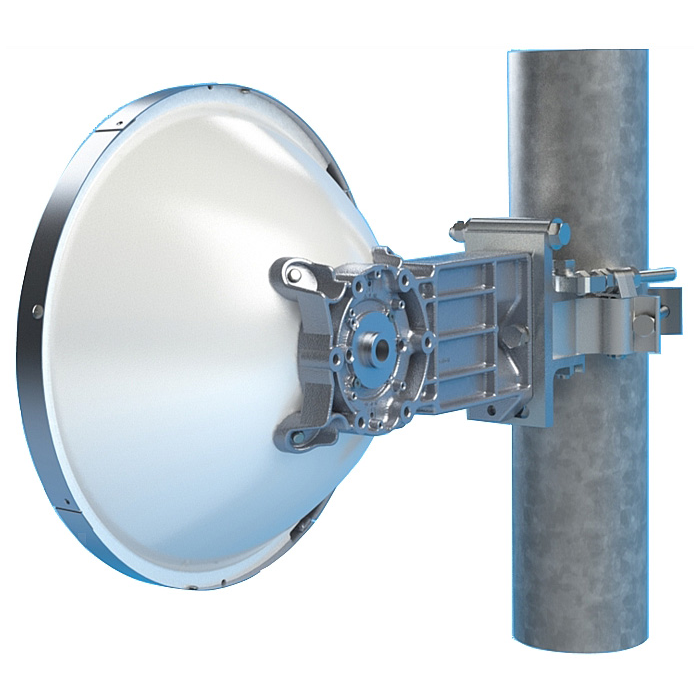

CommScope VHLPX1-23-1WH/C

1 ft ValuLine high performance low-profile antenna, dual-polarized, 21.200 – 23.600 GHz, UG-595 flange, white antenna, gray radome without flash, standard packaging

$1,299⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

DOCUMENTS

Specs

VHLPX1 23 1WH C PRODUCT SPECIFICATIONS

Description

Manufacturer

Commscope

Description

COMMSCOPE's VHLPX1-23-1WH/C 1 ft ValuLine high performance low-profile antenna, dual-polarized, 21.200 – 23.600 GHz, UG-595 flange, white antenna, gray radome without flash, standard packaging—one-piece reflector

Horizontal Beamwidth

3.0 deg

Diameter

1 ft

Maximum Rated Wind Velocity

155 mile/h

Return Loss

17.7 dB

Maximum VSWR

1.30:1

Vertical Beamwidth

3.0 deg

XPD

30 dB

Gain, Middle

35.6 dBi

Gain, Low

35.0 dBi

Polarization

Dual

Gain, High

36.2 dBi

Minimum Front Back Ratio

62 dB
