Laird TE Connectivity CFSA69383P1-30NF
Regular price
$9995
Unit price
Shipping calculated at checkout.
Description
Description
Manufacturer
TE Connectivity
Product Narrative

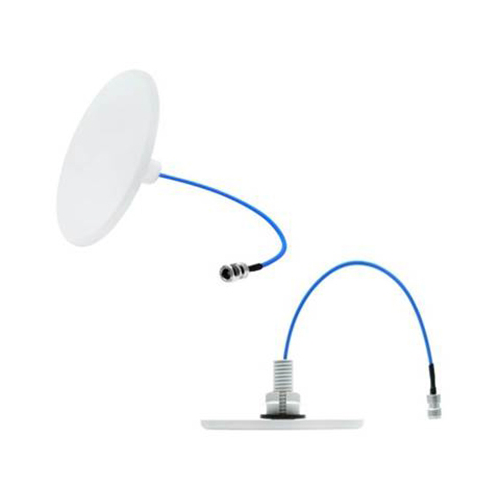

LAIRD's CFSA69383P1-30NF is a one-port low PIM indoor wideband omnidirectional low-profile ceiling mount antenna. It is designed to provide pattern coverage that is optimized for indoor coverage requirements at 698 – 960 MHz, and 1690 – 3800 MHz for the GSM, DCS, UMTS, AWS-3, and LTE / WiMAX frequency bands. The surprisingly small size and extreme low-profile enables maximum mounting flexibility while maintaining desired in-building aesthetics.
Specific Frequency
698-960 MHz, 1350-1550 MHz, 1690-3800 MHz
PIM Minimum
-160 dBc
Polarization
Linear, Horizontal
Item Width
7.0 in
Item Weight
0.5 lb
Maximum VSWR
2.0:1
Maximum Power
50 W
Item Length
7.1 in
RF Connectors
N Female
Item Height
.3 in
Warranty
5 Year
