Radio Waves SP3-1.3NS
SKU 12839Product type Base Antenna
Regular price
$1,66895
Unit price
Key Specifications
- Antenna Design
- Dish
- Frequency
- 1350-1535 MHz
- Bands
- Single Band
- Gain
- Extreme Gain (12+ dBi)
- Connector Type
- N Female
Product details
Manufacturer
Radio Waves
Product

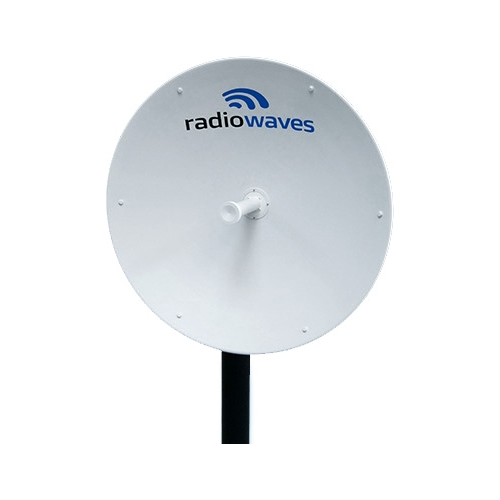

The Radiowaves SP3-1.3NS 1.35-1.535 GHz, 19.5dBi gain, 3' parabolic antenna with N Female connector. The antenna is lightweight and features a rugged design. It is easily installed and can be attached to a 4.5" pipe mast.
Maximum Rated Wind Velocity
125
Radome Included
No
Vertical Beamwidth
15.4 deg
Maximum VSWR
1.5:1
Return Loss
14 dB
XPD
30 dB
Polarization
Single
Diameter
4 ft
Item Weight
22 lb
Flange Type
N Female
Horizontal Beamwidth
15.4 deg
Item Height
36 in
Gain, Middle
19.5 dBi
Item Width
36 in
Specific Frequency
1.35-1.535 GHz
