Description
Description
Manufacturer
MECA Electronics Inc.
Description

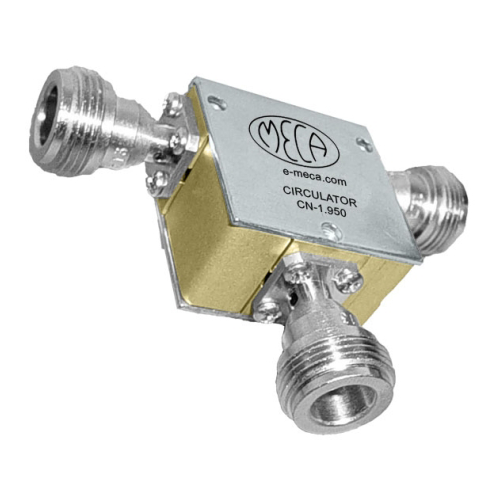

MECA's CN-1.950/GR 1.700 – 2.200 MHz circulator. 1.30:1 VSWR. 18 dB isolation. N Female connectors, 150 W.
Temperature Range
-20-65 deg C
RF Connectors
N Female
Item Length
1.12 in
Maximum VSWR
1.25:1
Item Width
1.25 in
Bandwidth
300 MHz
Frequency Range
1.7-2.2 GHz
Maximum Power Input
150 W
Minimum Isolation
20 dB
Nominal Insertion Loss
0.4 dB
Item Height
.73 in
