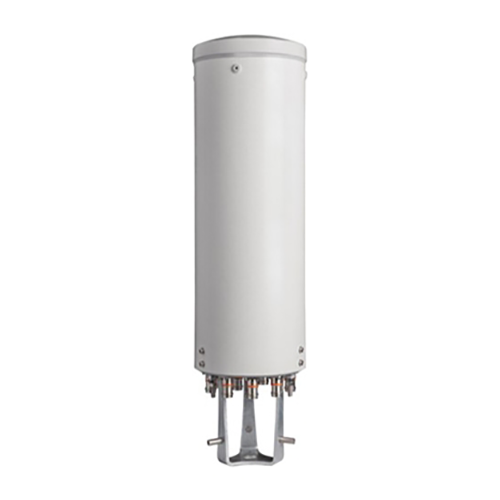

CommScope VVSSP-360S-M
MPN VVSSP-360S-MSKU 12855Product type Base Antenna
Regular price
$000
Unit price
Documents
Key Specifications
- Antenna Design
- Panel/Sector
- Frequency
- 1580-1990 MHz, 1695-1850 MHz, 1920-2180 MHz, 2300-2690 MHz, 3400-3800 MHz, 5150-5925 MHz
- Bands
- Multi-Band
- Gain
- High Gain (6-9 dBi)
- Connector Type
- 4.3-10
Product details
Manufacturer
Commscope
Description
COMMSCOPE's VVSSP-360S-M ten-port small cell antenna, four (4) 1695 – 2690, four (4) 3400 – 3800 and two (2) 5150 – 5925 MHz. 360 deg. horizontal beamwidth, manual electrical tilt
Item Weight
28.7 lb
Item Length
24.0 in
Maximum Rated Wind Velocity
150 mile/h
Gain dBi
7.9 dBi, 8.5 dBi, 8.7 dBi, 8.5 dBi, 7.2 dBi, 4.3 dBi
Specific Frequency
1695-1850 MHz, 1580-1990 MHz, 1920-2180 MHz, 2300-2690 MHz, 3400-3800 MHz, 5150-5925 MHz

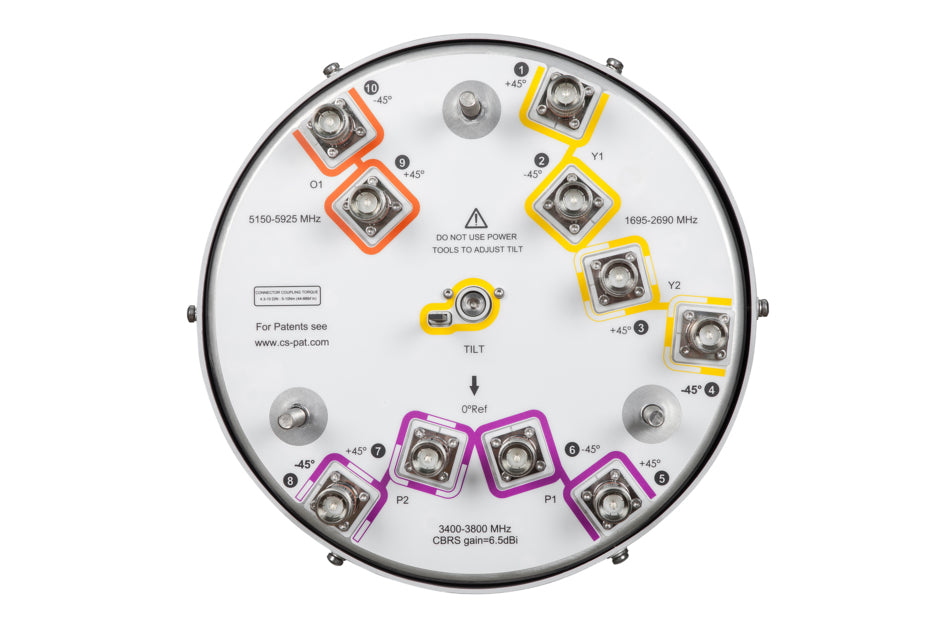

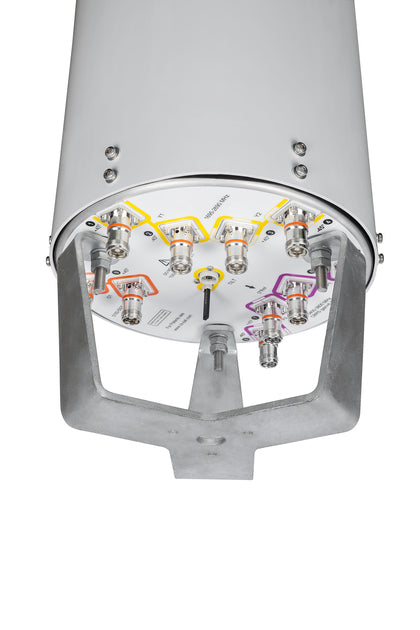

Connector Placement
Bottom
Maximum Power
75 W, 75 W, 75 W, 75 W, 35 W, 5 W
Item Width
12.0 in
RF Connectors
4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female
Polarization
+/- 45 Degrees
