Manufacturer
Commscope
Description

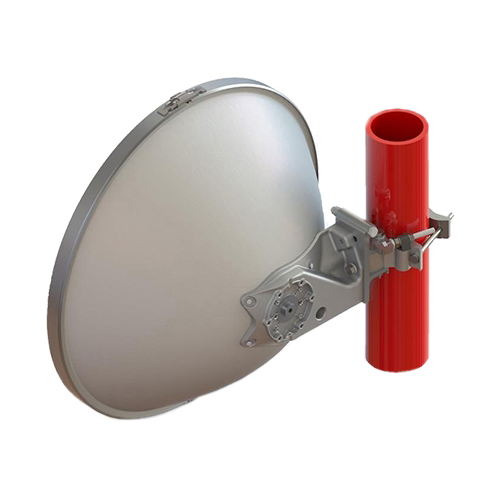

COMMSCOPE's VHLPX2-11W-2WH/A 0.6 m | 2 ft ValuLine(R) high performance low-profile antenna, dual-polarized, 10.000 – 11.700 GHz, PBR100 flange, white antenna, composite broadband gray radome without flash, compact pack—one-piece reflector
Return Loss
17.7 dB
Diameter
2 ft
Item Weight
17 lb
Maximum VSWR
1.30:1
Flange Type
PBR100
Maximum Rated Wind Velocity
155 mile/h
Horizontal Beamwidth
3.3 deg
Minimum Front Back Ratio
61 dB
Gain, High
35.2 dBi
Number of Struts Included
0
Specific Frequency
10.0-11.7 MHz
Radome Included
Yes
Vertical Beamwidth
3.3 deg
Gain, Low
33.7 dBi
Gain, Middle
34.5 dBi
Color
White
