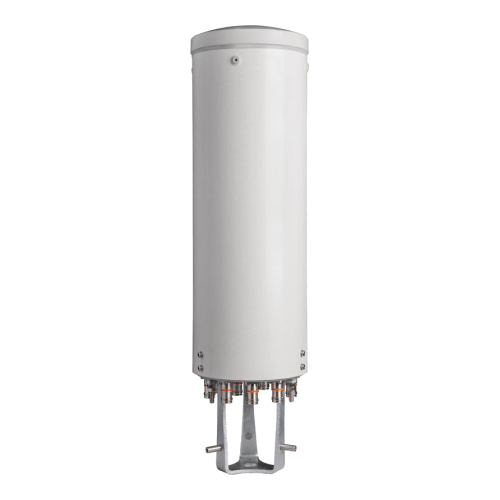

CommScope VVSSP-65S-R1B

MPN VVSSP-65S-R1BSKU 12892Product type Base Antenna

10-port small cell antenna for 1695-2690, 3400-3800 and 5150-5925 MHz with 75W rating, internal RET and 4.3-10 connectors

Regular price $000
Documents

Key Specifications

Antenna Design
Panel/Sector
Frequency
1695-1920 MHz, 1920-2180 MHz, 2300-2690 MHz, 3400-3800 MHz, 5150-5925 MHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
4.3-10

Product details

Manufacturer

Commscope

Description

COMMSCOPE's VVSSP-65S-R1B ten-port small cell antenna, four (4) 1695 – 2690, four (4) 3400 – 3800, and two (2) 5150 – 5925 MHz, 65 deg. HPBW, internal RET and SBT

Horizontal Beamwidth

73 deg, 71 deg, 70 deg, 74 deg, 85 deg

Item Width

7.9 in

Specific Frequency

5150-5925 MHz, 3400-3800 MHz, 2300-2690 MHz, 1920-2180 MHz, 1695-1920 MHz

Item Length

23.6 in

Polarization

+/- 45 Degrees

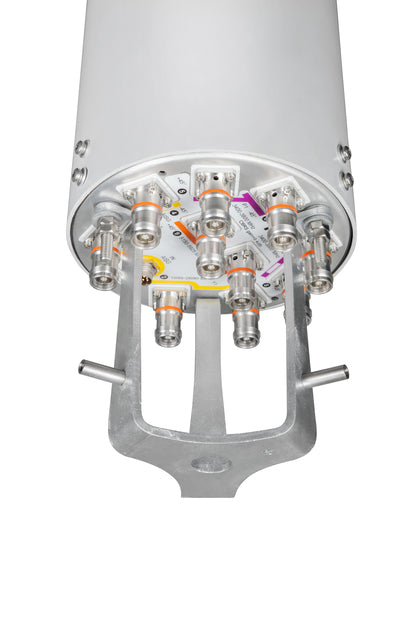

Connector Placement

Bottom

Maximum Power

75 W

Maximum VSWR

1.5:1

Gain dBi

11.6 dBi, 12.3 dBi, 12.8 dBi, 9.8 dBi, 4.2 dBi

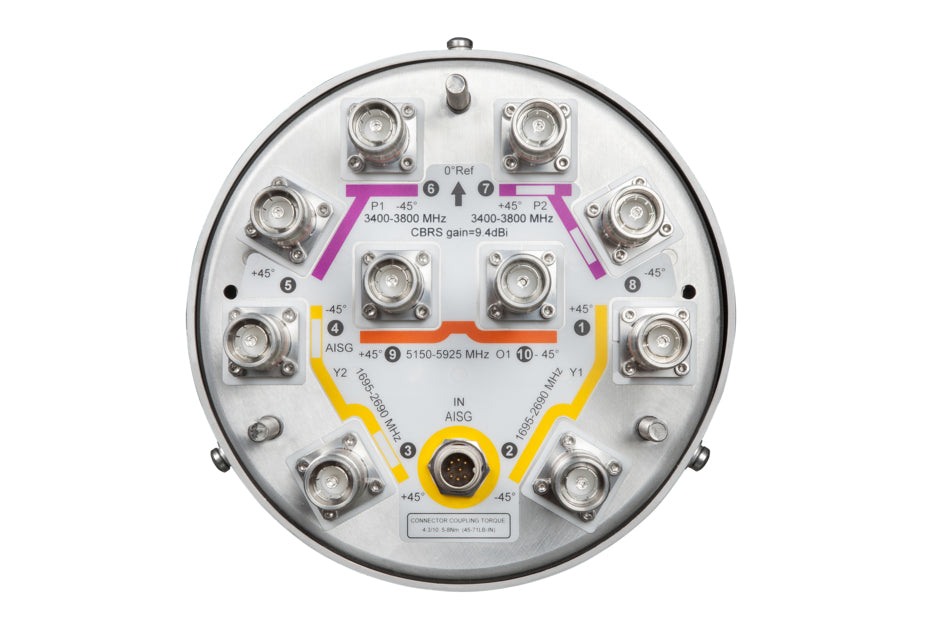

RF Connectors

4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female
