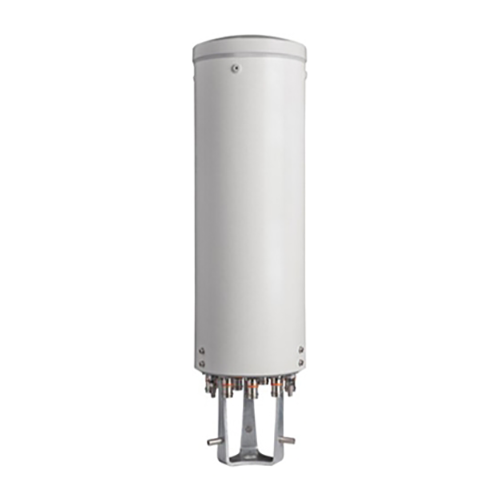

CommScope VVSSP-360S-F

MPN VVSSP-360S-FSKU 12894Product type Base Antenna

10-port small cell antenna with 4x 1695-2690, 4x 3300-4000 and 2x 5150-5925 MHz ports and 360 degree beamwidth

Regular price $000
Documents

Key Specifications

Antenna Design
Panel/Sector
Frequency
1695-1920 MHz, 1920-2180 MHz, 2300-2690 MHz, 3400-3800 MHz, 5150-5925 MHz
Bands
Multi-Band
Gain
Very High Gain (9-12 dBi)
Connector Type
4.3-10

Product details

Manufacturer

Commscope

Description

COMMSCOPE's VVSSP-36S-F ten-port small cell antenna, four (4) 1695 – 2690, four (4) 3400 – 3800, and two (2) 5150 – 5925 MHz, 360 deg. horizontal beamwidth, fixed tilt

Horizontal Beamwidth

360 deg

Specific Frequency

5150-5925 MHz, 3400-3800 MHz, 2300-2690 MHz, 1920-2180 MHz, 1695-1920 MHz

Item Length

23.6 in

Item Weight

15.4 lb

Electrical Downtilt

Fixed

Item Height

7.9 in

Polarization

+/- 45 Degrees

Maximum Power

125 W, 125 W, 125 W, 50 W, 10 W

Maximum VSWR

1.5:1

Gain dBi

9.3 dBi, 10.3 dBi, 10.6 dBi, 8.5 dBi, 5.1 dBi

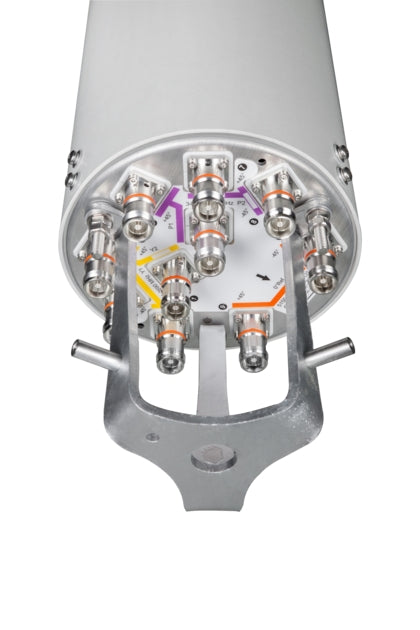

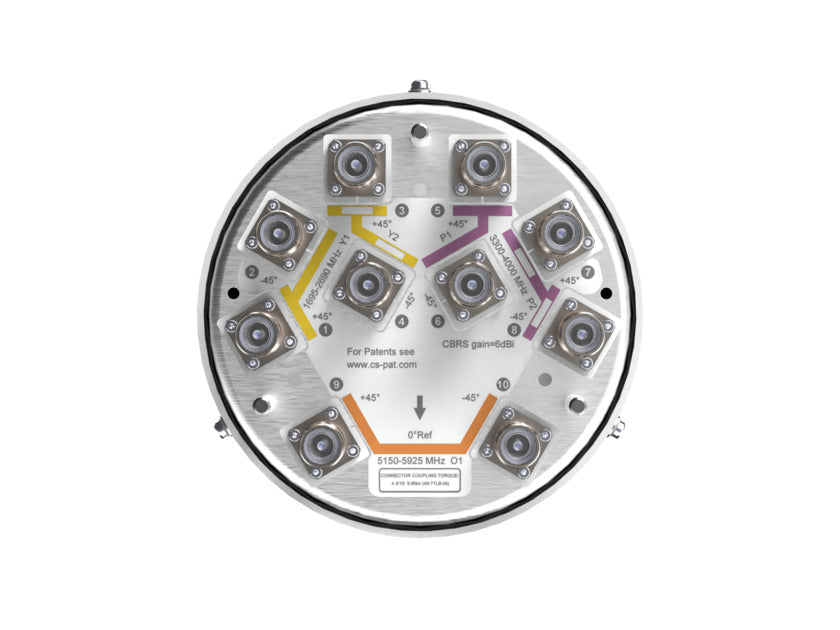

RF Connectors

4.3-10 Female
