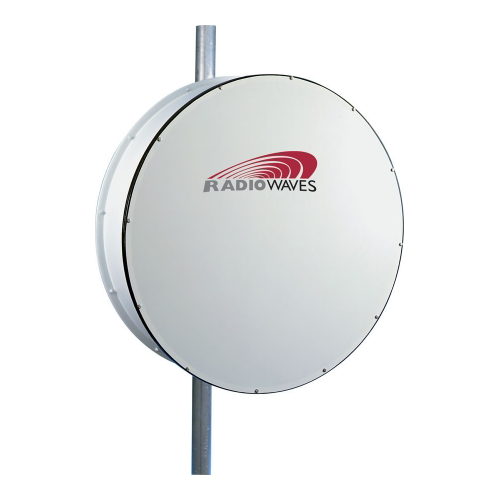

Radio Waves HP2-11RR

SKU 12898Product type Base Antenna

2 ft single-polarized high performance dish for 10.7-11.7 GHz with 30 dB XPD and rectangular Remec flange

Regular price $97862

Key Specifications

Antenna Design
Dish
Frequency
10.7-11.7 GHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
Flange

Product details

Manufacturer

Radio Waves

Product

RADIO WAVES' HP2-11RR high performance series for 10.7 – 11.7 GHz frequencies

Specific Frequency

10.7-11.7 GHz

Maximum Rated Wind Velocity

125

Vertical Beamwidth

3.4 deg

Maximum VSWR

1.37:1

Return Loss

16.1 dB

XPD

30 dB

Minimum Front Back Ratio

60 dB

Gain, High

34.8 dBi

Polarization

Single

Diameter

2 ft

Item Weight

27 lb

Flange Type

Rectangular Remec

Gain, Low

34.2 dBi

Horizontal Beamwidth

3.4 deg

Item Height

24 in

Gain, Middle

34.5 dBi

Item Width

24 in
