Sinclair Technologies FP20107-1
Regular price
$86995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
FP20107-1
Product Description

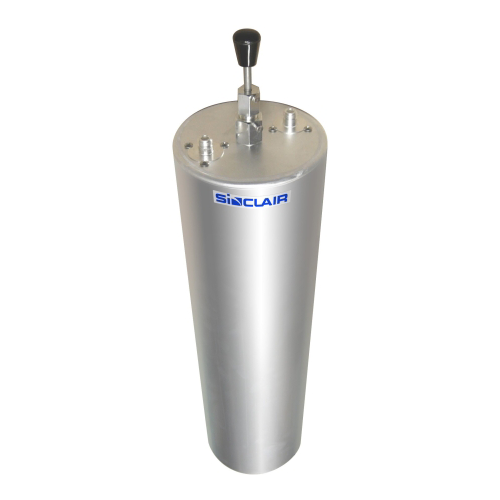

SINCLAIR's 108 – 136 MHz bandpass cavity. 7 in diameter. 400 W at 0.5 dB loss. N Female connectors. *Factory tuned
RF Connectors
N Female
Insertion Loss Range)
0.5-3.0 dB
Maximum Power Input
400 W
Tuning Method
Factory Tune
Maximum VSWR
1.5:1
Cavity Size
7 in
Filter Type
Bandpass
Number of Cavities
1
Frequency Range
108-136 MHz
Maximum Size (HxWxD)
43.8" x 7" x 7"
Maximum VSWR @ 50 Ohms
1.5:1 @ 1.5 dB IL
Tuning Method
Factory or Field Tune
Maximum Size (HxWxD")
32.5 x 7 x 7
