MPN: TWPC-1405-1
BRAND: TeleWave inc
SKU: 12910

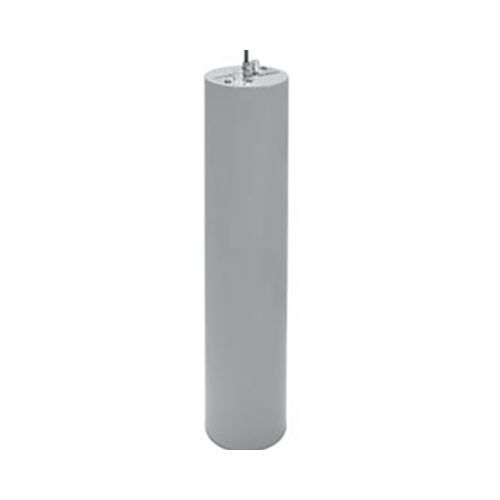

TeleWave TWPC-1405-1

Name: TeleWave TWPC-1405-1
Brand: TeleWave inc
SKU: 12910
Price: 737.95 USD
Availability: InStock

TWPC-1405-1 is a 118 – 148 MHz 5 in diameter, 1/4 wavelength, high "Q" bandpass cavity filters, reducing transmitter sideband noise, and also protect receivers against desensitization.

$737⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

502100 TWPC 1405 1

Description

Manufacturer

Telewave, Inc.

Product Description

The Telewave TWPC-1405-1 is a 118 – 148 MHz 5 in diameter, 1/4 wavelength, high "Q" bandpass cavity filters with superior selectivity. Bandpass cavities reject all frequencies outside a narrow passband. These cavities reduce transmitter sideband noise, and also protect receivers against desensitization.

Insertion Loss Range

0.3-2.0 dB

Maximum Power Input

350 W

Maximum VSWR

1.5:1

Tuning Method

Factory Tune

Frequency Range

118-148 MHz

Filter Type

Bandpass

Cavity Size

5 in

RF Connectors

N Female
