Galtronics GP2912-06907-112
MPN GP2912-06907-112SKU 12923Product type Base Antenna
Regular price
$2,74660
Unit price
Ships Separately: this item requires its own package
Key Specifications
- Antenna Design
- Panel/Sector
- Frequency
- 600 MHz, 617-896 MHz, 1695-2690 MHz, 3300-4200 MHz, 5150-5925 MHz
- Bands
- Multi-Band
- Gain
- Extreme Gain (12+ dBi)
- Connector Type
- 4.3-10
Product details
Manufacturer
Galtronics USA, Inc.
Product Narrative

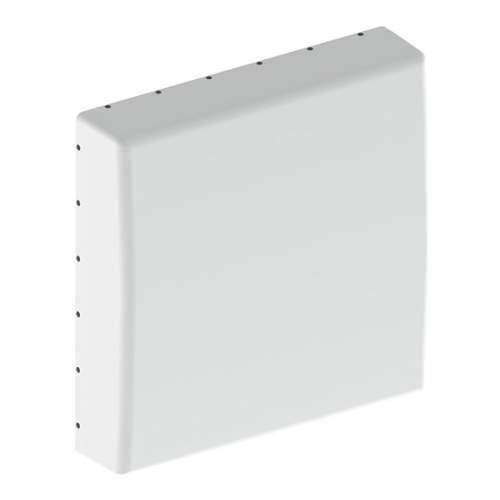

Galtronics GP2912-06907 12-Port Directional Panel Antenna. 617-896, 1695-2690, 3300-4200 and 5150-5925 MHz. 4.3-10 Female connectors.
- Single-sector 12-Port MIMO antenna for high capacity stadium and venue applications
- 30°/30° beam width dual-polarized covering 600 MHz/LTE/CELL, AWS/PCS/WCS/BRS, CBRS and LAA / U-NII Bands.
- 2x ports for 617-896 MHz
- 4x ports for 1695-2690 MHz
- 4x ports for 3300-4200 MHz
- 2x ports for 5150-5925 MHz
Jumper Included
No
Maximum Power
1 W, 100 W, 200 W, 200 W
Maximum VSWR
1.5:1
RF Connectors
4.3-10 Female
Connector Placement
Back
Maximum Rated Wind Velocity
150 mile/h
Gain dBi
12.4 dBi, 12.8 dBi, 12.9 dBi, 14.4 dBi, 15.1 dBi, 15.5 dBi, 13.9 dBi, 14.5 dBi, 14.9 dBi, 4.4 dBi
Polarization
+/- 45 Degrees
