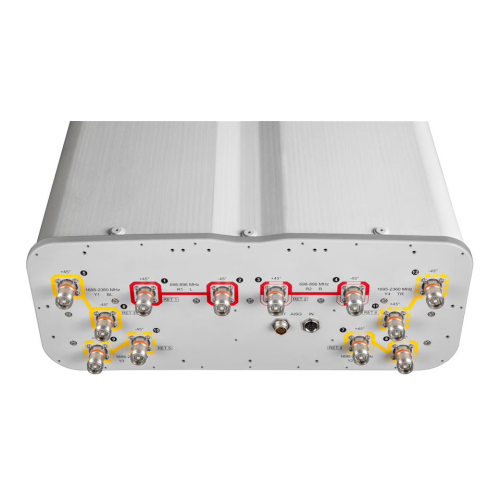

CommScope NNH4-65D-R6

MPN NNH4-65D-R6SKU 12924Product type Base Antenna

12-port sector antenna for 698-896 and 1695-2360 MHz with 65 degree beamwidth, 2-12 degree tilt and 4.3-10 female connectors

Regular price $000
Ships Separately: this item requires its own package


Freight: this item requires LTL shipping


Documents

Key Specifications

Antenna Design
Panel/Sector
Frequency
698-806 MHz, 806-896 MHz, 1695-2360 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2180 MHz, 2300-2360 MHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
4.3-10

Product details

Manufacturer

CommScope

Model #

NNH4-65D-R6

Description

COMMSCOPE's twelve-port multi-band multiport antenna, two (2) 698 – 897, four (4) 1695 – 2360 MHz, 65 deg. HPBW, 2 – 12 deg. tilt, twelve (12) 4.3-10 Female, four (4) low band, eight (8) high band RET

Maximum Rated Wind Velocity

149.75 mile/h

Item Length

105.827 in

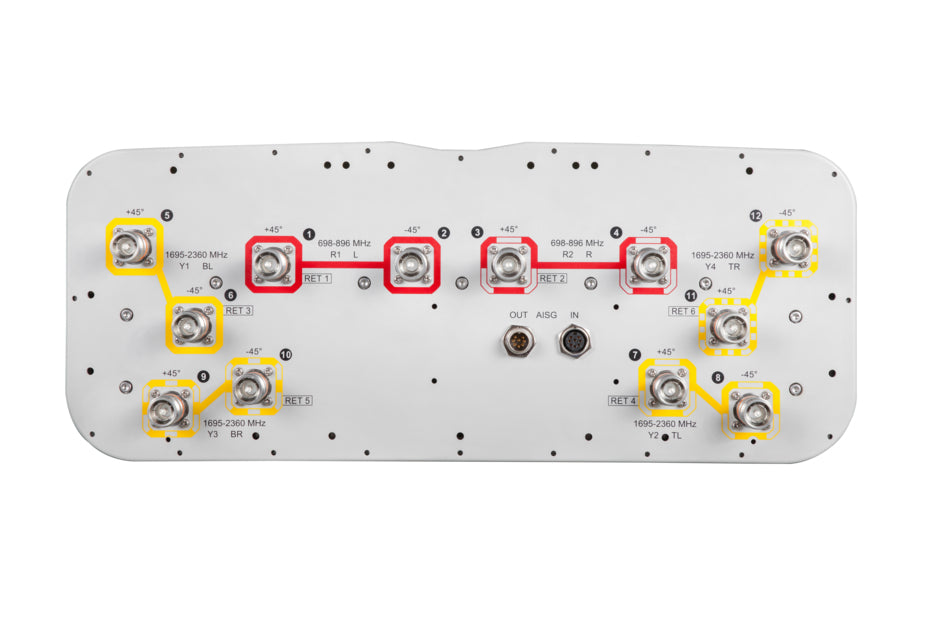

RF Connectors

4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female

Item Width

19.606 in

Gain dBi

18.3 dBi, 17.8 dBi, 17.7 dBi, 17.1 dBi, 16.5 dBi, 16.1 dBi

Maximum Power

300 W, 300 W, 300 W, 300 W, 350 W, 350 W

Connector Placement

Bottom

Specific Frequency

2300-2360 MHz, 1920-2180 MHz, 1850-1990 MHz, 1695-1880 MHz, 806-896 MHz, 698-806 MHz
