CommScope NNH4-65A-R6H4

MPN NNH4-65A-R6H4SKU 12925Product type Base Antenna

12-port sector antenna with four 698-896 and eight 1695-2360 MHz ports, 65 degree beamwidth and six RETs with 4.3-10 connectors

Regular price $000
Ships Separately: this item requires its own package


Documents

Key Specifications

Antenna Design
Panel/Sector
Frequency
806-896 MHz, 1695-2360 MHz, 1850-1990 MHz, 2300-2360 MHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
4.3-10

Product details

Manufacturer

CommScope

Model #

NNH4-65A-R6H4

Description

COMMSCOPE's NNH4-65A-R6H4 12-port sector antenna, four (4) 698 – 896 and eight (8) 1695 – 2360 MHz, 65 deg. HPBW, six (6) RETs, 4T4R (4X MIMO) capability for Band 14 High Band, AWS, PCS and WCS applications.

Polarization

+/- 45 Degrees

Horizontal Beamwidth

72 deg, 63 deg, 59 deg, 60 deg, 62 deg

RF Connectors

4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female

Maximum Rated Wind Velocity

150 mile/h

Maximum Power

250 W

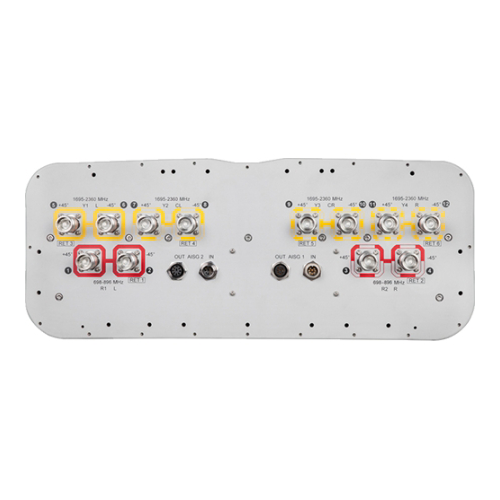

Connector Placement

Bottom

Item Width

19.6 in

Item Height

7.8 in

Item Length

55.1 in

Item Weight

72.8 lb

Gain dBi

15.2 dBi, 14.8 dBi, 14.7 dBi, 14.0 dBi, 13.8 dBi, 13.2 dBi

Specific Frequency

2300-2360 MHz, 1920-2180 MHz, 1850-1990 MHz, 1695-1880 MHz, 806-896 MHz, 698-806 MHz
