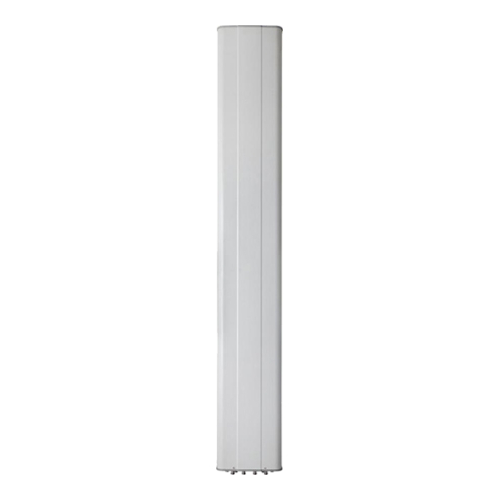

CommScope JAH4-65C-R4

MPN JAH4-65C-R4SKU 12930Product type Base Antenna

Twelve-port sector antenna, two (2) 698-803, two (2) 824-894 and eight (8) 1695-2360 MHz, 65 deg. HPBW, four (4) RETs and low bands have diplexers

Regular price $000
Ships Separately: this item requires its own package


Freight: this item requires LTL shipping


Documents

Key Specifications

Antenna Design
Panel/Sector
Frequency
1695-2360 MHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
4.3-10

Product details

Manufacturer

CommScope

Model #

JAH4-65C-R4

Description

COMMSCOPE's JAH4-65C-R4 twelve-port sector antenna, two (2) 698 – 803, two (2) 824 – 894 and eight (8) 1695 – 2360 MHz, 65 deg. HPBW, four (4) RETs and low bands have diplexers

Item Length

95.984 in

Maximum Rated Wind Velocity

150 mile/h

Gain dBi

15.9 dBi, 16.3 dBi, 16.8 dBi, 17.2 dBi, 17.4 dBi, 18 dBi

Specific Frequency

1850-1990 MHz, 1920-2180 MHz, 2300-2360 MHz, 698-803 MHz, 824-894 MHz, 1695-1880 MHz

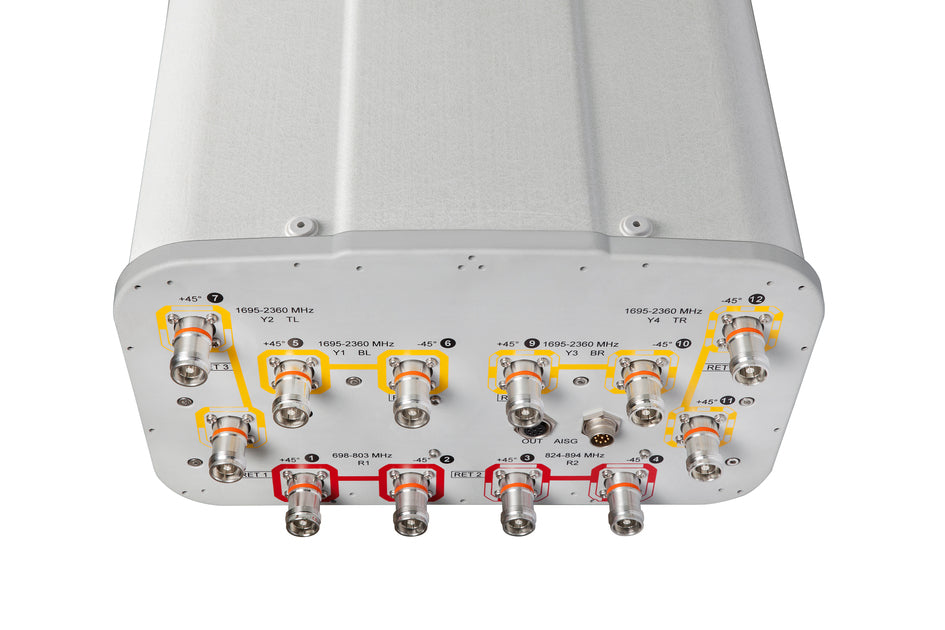

Connector Placement

Bottom

Maximum Power

300 W, 300 W, 250 W, 250 W, 250 W, 200 W

Item Width

13.78 in

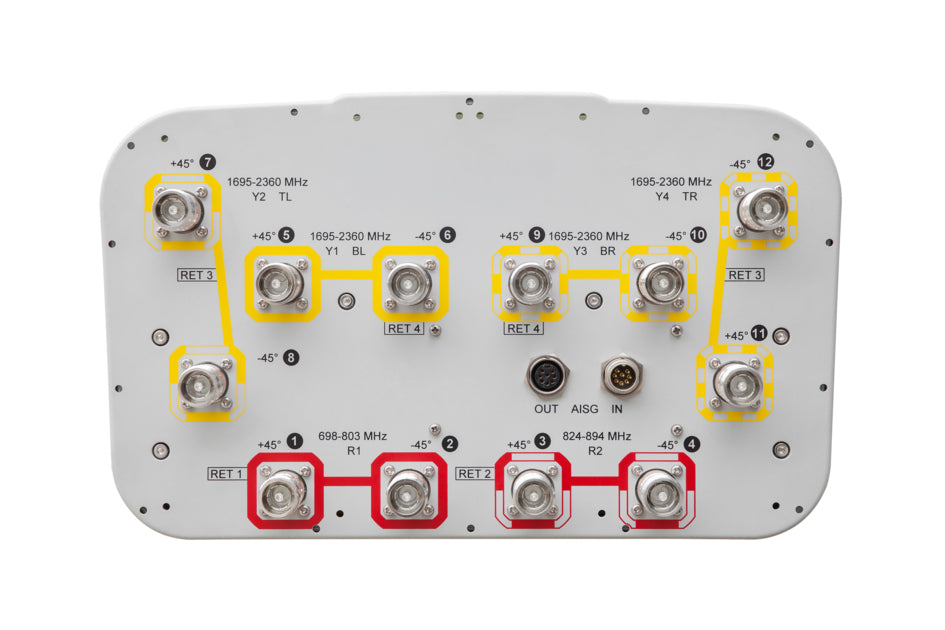

RF Connectors

4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female, 4.3-10 Female

Polarization

+/- 45 Degrees
