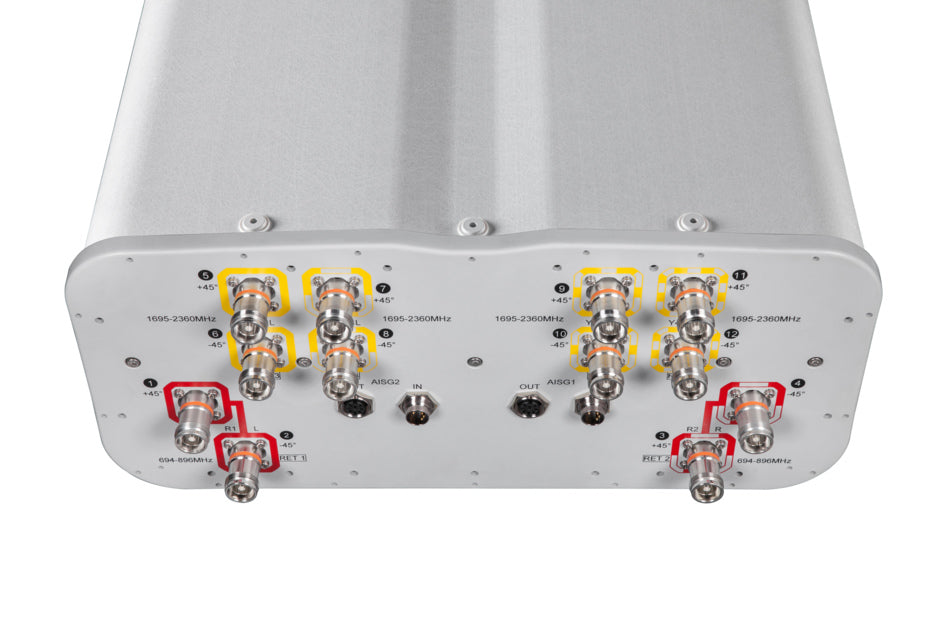

CommScope NNH4-65B-R6N17
Regular price
$000
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Description
Description
Manufacturer
CommScope
Model #
NNH4-65B-R6N17
Description

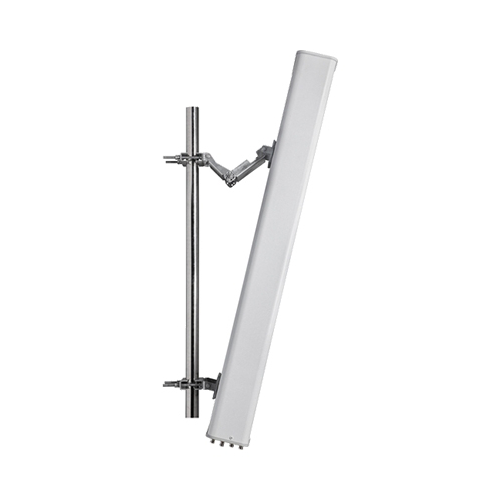

COMMSCOPE's NNH4-65B-R6N17 12-port sector antenna, 4x 694 – 896 and 8x 1695 – 2360 MHz, 65 deg. HPBW, 6x RET
Item Length
79.5 in
Item Weight
98.53 lb
Gain dBi
18.2 dBi, 17.6 dBi, 17.1 dBi, 16.3 dBi, 14.5 dBi, 13.7 dBi
Polarization
+/- 45 Degrees
Horizontal Beamwidth
55 deg, 57 deg, 59 deg, 60 deg, 63 deg, 66 deg

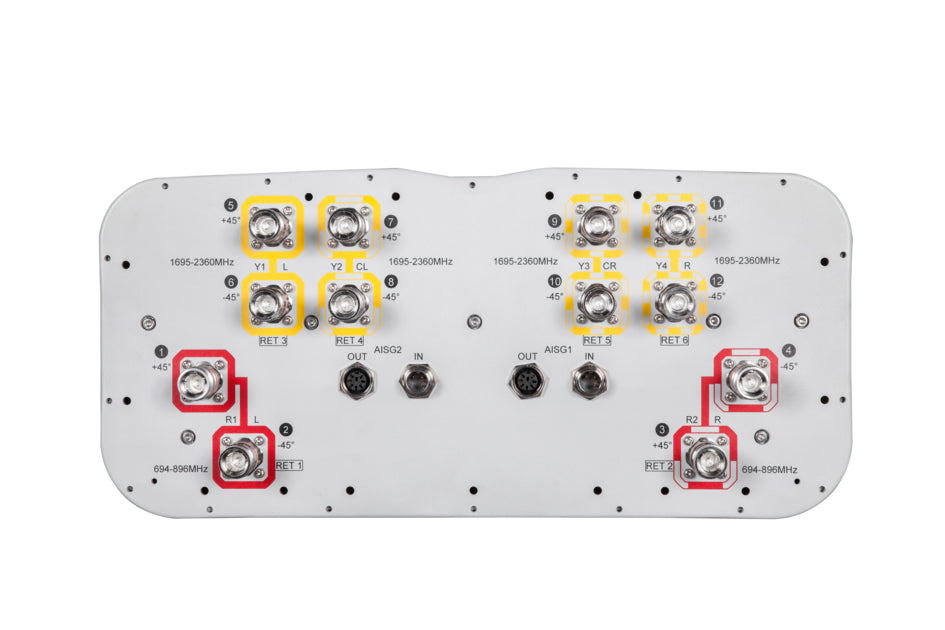

RF Connectors
4.3-10 Female
Maximum Power
900 W
Connector Placement
Bottom
Specific Frequency
694-896 MHz, 1695-2360 MHz
Minimum Front Back Ratio
34 dB
Maximum VSWR
1.5:1
Item Width
20.86 in
Item Height
13.74 in
