Description
Description
Manufacturer
CommScope
Model #
NNH4-65C-R6N17
Description

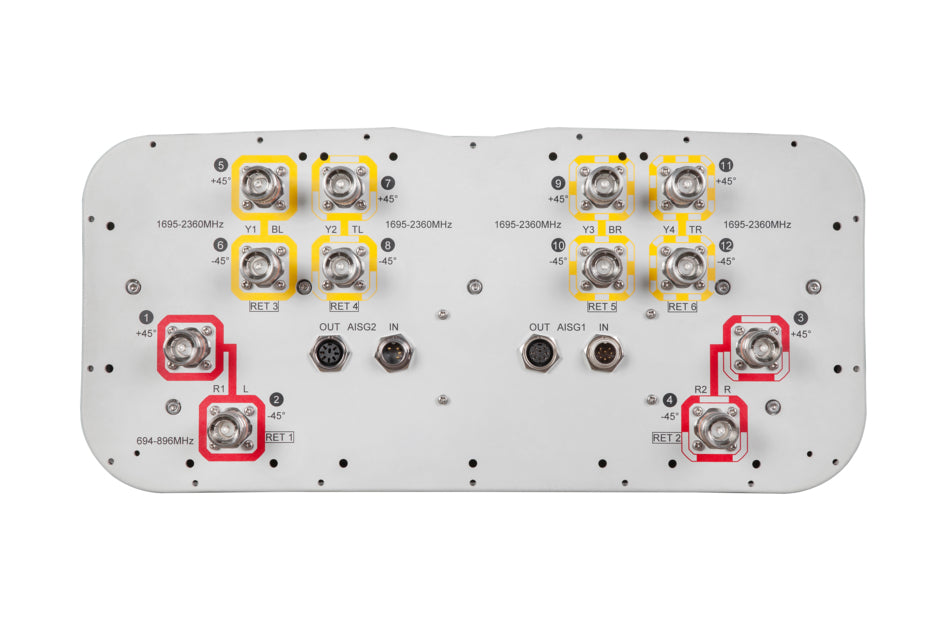

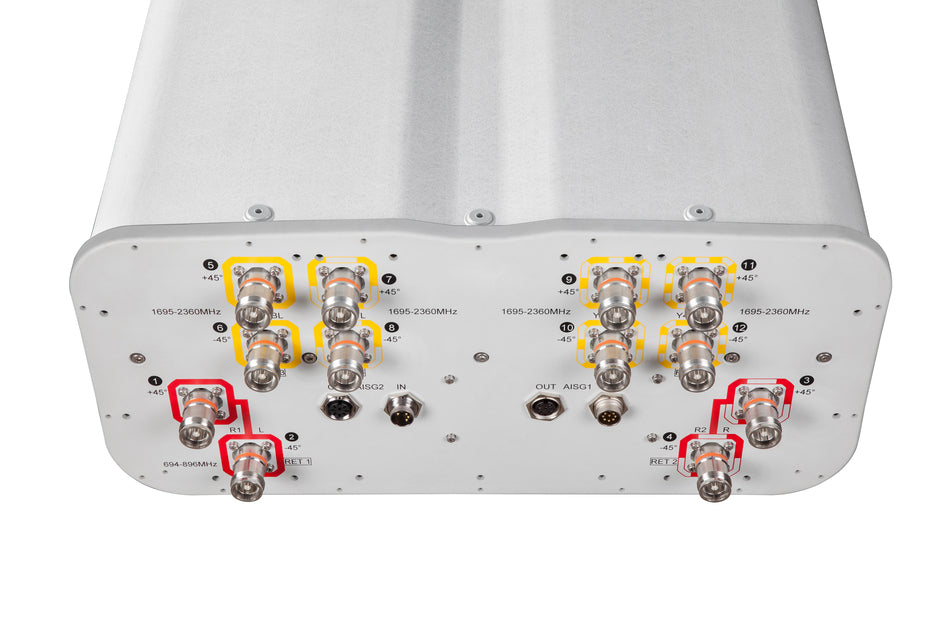

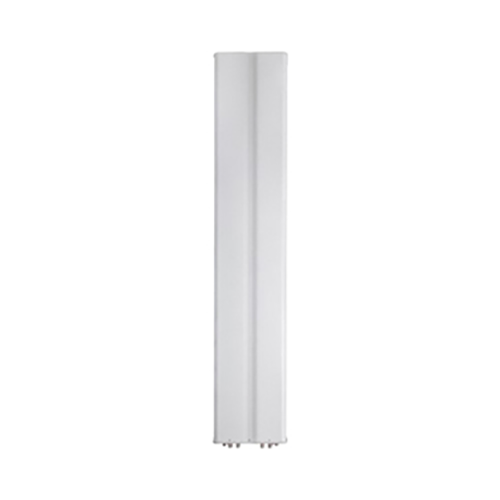

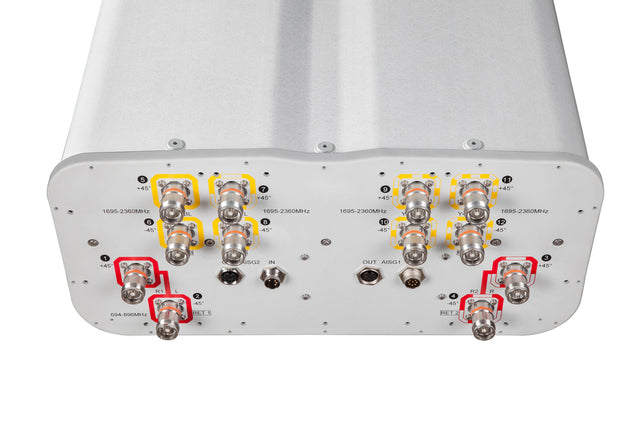

COMMSCOPE's NNH4-65C-R6N17 12-port sector antenna, 4x 698 – 896 and 8x 1695 – 2360 MHz, 65 deg. HPBW, 6x RET
Item Length
103 in
RF Connectors
4.3-10 Female
Polarization
+/- 45 Degrees
Item Weight
93.03 lb
Horizontal Beamwidth
59 deg
Item Height
14 in
Item Width
21 in
Gain dBi
17.7 dBi, 17.6 dBi, 17.2 dBi, 16.4 dBi, 15.7 dBi, 14.9 dBi
Maximum Power
300 W
Specific Frequency
698-896 MHz
