CommScope VHLPX3-13-1WH/A

MPN VHLPX3-13-1WH/ASKU 12938Product type Base Antenna

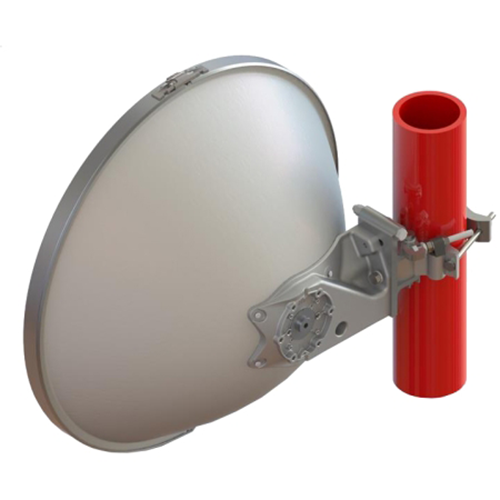

3 ft dual-polarized ValuLine high performance low-profile dish for 12.700-13.250 GHz with WR75 flange

Regular price $2,99995
Ships Separately: this item requires its own package


Freight: this item requires LTL shipping


Documents

Key Specifications

Antenna Design
Dish
Frequency
12.7-13.25 GHz
Bands
Multi-Band
Gain
Extreme Gain (12+ dBi)
Connector Type
Flange

Product details

Manufacturer

CommScope

Model #

VHLP2-13-1WH/B

Description

CommScope's VHLPX3-13-1WH/A 0.9 m | 3 ft ValuLine high performance low-profile microwave antenna, dual-polarized, 12.700 – 13.250 GHz, WR75 flange, white antenna, composite broadband gray radome without flash, 1.3 VSWR, 17.7 dB return loss. Standard pack - one-piece reflector.

Radome Included

Yes

Maximum Rated Wind Velocity

155 mile/h

Item Length

23.1 in

Maximum VSWR

1.3:1

XPD

30 dB

Gain, Low

39.9 dBi

Item Width

39.4 in

Number of Struts Included

0

Return Loss

17.7 dB

Specific Frequency

12.700 - 13.250 GHz

Gain, High

40.1 dBi

Polarization

Dual

Vertical Beamwidth

1.7 deg

Horizontal Beamwidth

1.7 deg

Minimum Front Back Ratio

66 dB

Item Height

39.4 in

Gain, Middle

40.0 dBi

Item Weight

37.479 lb

Color

White
