Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
I2212A
Product Description

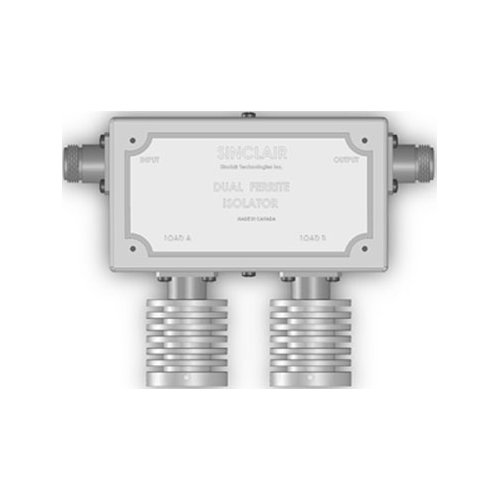

SINCLAIR's 132 – 174 MHz ferrite isolator, dual-stage, 125 W, 5 MHz bandwidth, 30, 30 W loads, N Female, not field tunable. *factory tuned to
Item Length
3.5 in
Maximum Power Input
125 W
Tuning Method
Factory Tune
Color
Gray
Frequency Range
132-174 MHz
Minimum Isolation
75 dB
Temperature Range
-30-60 deg C
RF Connectors
N Female
Item Width
1.4 in
Maximum VSWR
1.25:1
Item Height
2.5 in
Nominal Insertion Loss
1 dB
Bandwidth
5 MHz
