Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
I2210A
Product Description

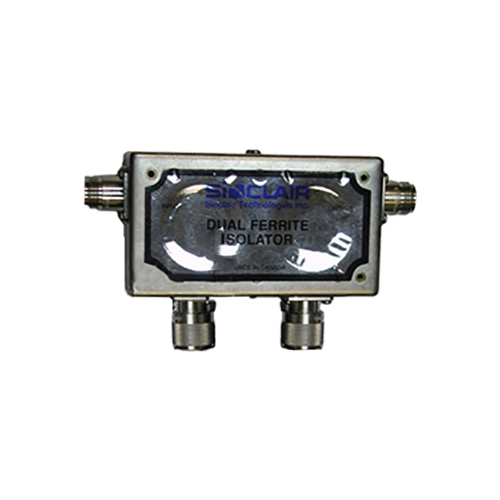

The Sinclair I2210A 132 – 174 MHz dual circulator with N Female connectors. The circulator comes in a compact, rugged package. The careful temperature compensation ensures high isolation with very low insertion loss over their full operating temperature range, and offer a high degree of RF and magnetic stability. Threaded holes in the steel casing allow surface mounting to any non-magnetic material.
Maximum Power Input
125 W
Minimum Isolation
50 dB
Nominal Insertion Loss
0.7 dB
Bandwidth
5 MHz
Item Width
2.5 in
Maximum VSWR
1.25:1
RF Connectors
N Female
Item Height
1.4 in
Item Length
2.5 in
Frequency Range
132-174 MHz
