Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
MR256N-1

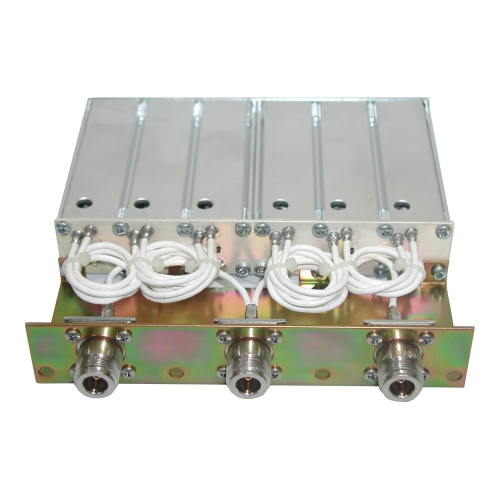

Product Description
136 – 148 MHz mobile duplexer. Notch (reject) type. 6 cavities. 4.5 – 10 MHz separation. N Female
Maximum VSWR
1.5:1
Number of Cavities
6
Minimum Isolation
80 dB
Item Height
1.31 in
Item Length
7 in
Finish
Aluminum
Insertion Loss (Tx/Ant-dB)
1.5
Insertion Loss (Rx/Ant-dB)
1.5
Maximum Power Input
50 W
RF Connectors
N Female
Minimum Separation
4.5
Frequency Range
136-148 MHz
