Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
MR256N-1
Product Description

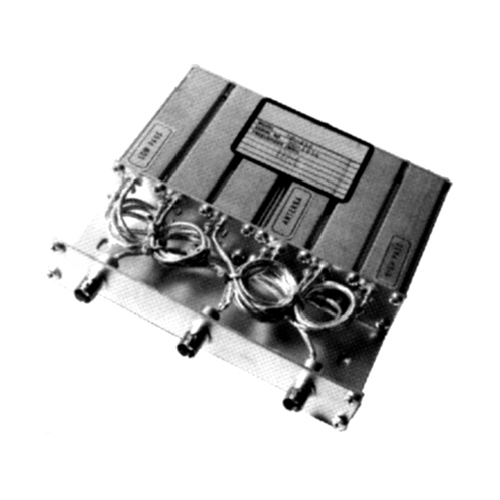

136 – 148 MHz mobile duplexer. Notch (reject) type. 6 cavities. 4.5 – 10 MHz separation. BNC Female connectors.
Maximum VSWR
1.5:1
Number of Cavities
6
Minimum Isolation
80 dB
Item Height
1.31 in
Item Length
7 in
Insertion Loss (Tx/Ant-dB)
1.5
Finish
Gray
Insertion Loss (Rx/Ant-dB)
1.5
Operating Temperature Range
-30-60 deg C
Maximum Power Input
50 W
RF Connectors
BNC Female
Minimum Separation
4.5
Frequency Range
136-160 MHz
