Description
Description
Manufacturer
EMR Corp
Mfg. Model No.
64316-0/MC(5C)
Product Description

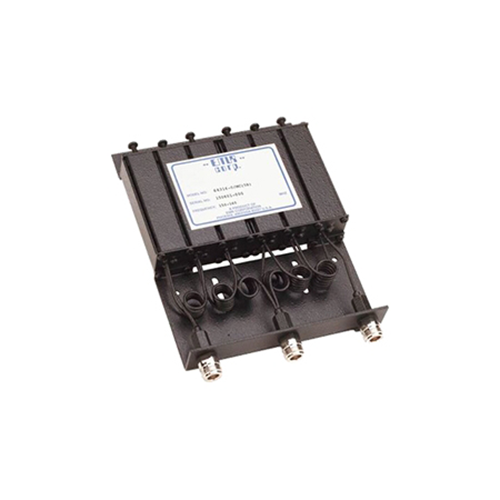

160-170 MHz mobile duplexer
Insertion Loss (Tx/Ant-dB)
1.2
Operating Temperature Range
-40-60 deg C
Number of Cavities
4
Item Width
6-1/8 in
Item Length
8-1/2 in
Minimum Isolation
70 dB
Minimum Separation
4.6 - 6 MHz
Item Height
1-3/8 in
Insertion Loss (Rx/Ant-dB)
1.2
Maximum VSWR
1.22:1
RF Connectors
N Female
Maximum Power Input
50 W
