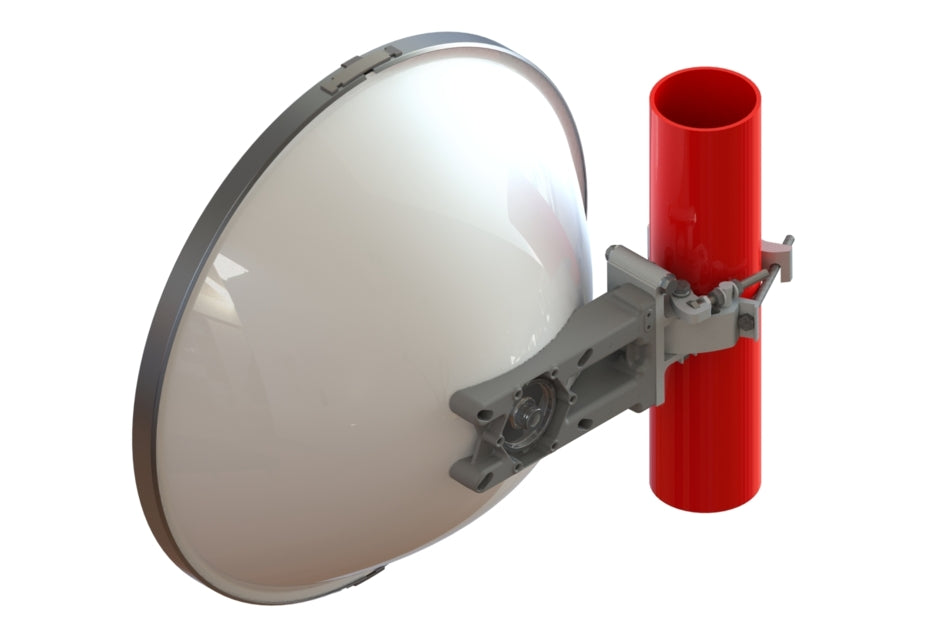

CommScope's VHLP1-15-2WH/C 0.3 m | 1 ft ValuLine high performance low-profile microwave antenna, single-polarized, 14.250 – 15.350 GHz, PBR140 flange, white antenna, gray radome without flash, 1.3 VSWR, 17.7 dB return loss. Standard packing - one-piece reflector.
Minimum Front Back Ratio
60 dB
Return Loss
17.7 dB
Radome Included
Yes
Maximum Rated Wind Velocity
155.343 mile/h
Number of Struts Included
0
Gain, High
32.9 dBi
Maximum VSWR
1.3:1
Diameter
1 ft
Color
White
Gain, Low
32.5 dBi
Vertical Beamwidth
4.1 deg
Polarization
Single
Horizontal Beamwidth
4.1 deg
Item Weight
13.228 lb
Gain, Middle
32.7 dBi
Specific Frequency
14.250 - 15.350 GHz
