MPN: VHLPX3-15-1WH/A
BRAND: CommScope
SKU: 12991

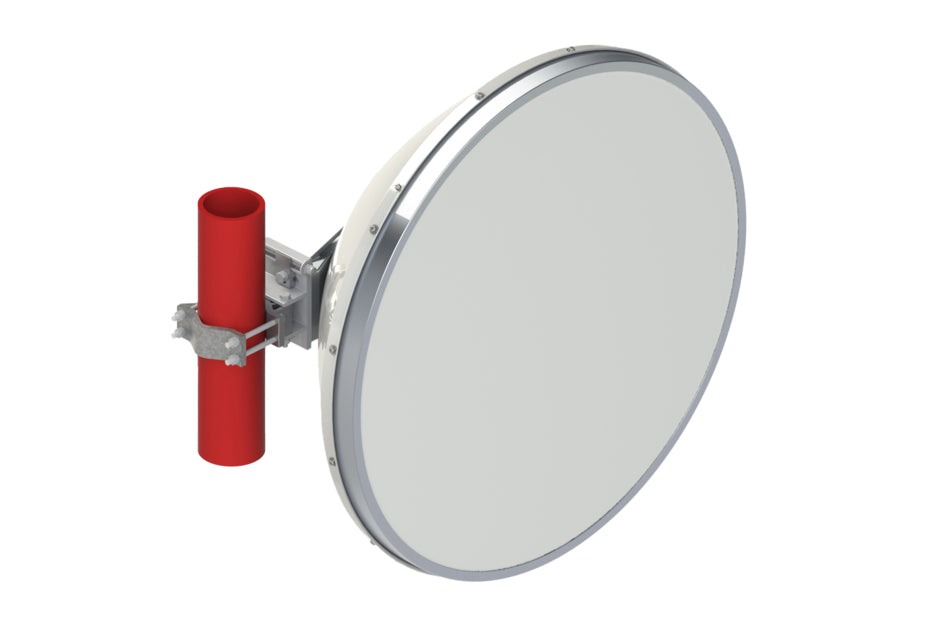

CommScope VHLPX3-15-1WH/A

3ft high performance low-profile antenna. Single-polarized, 14.250 – 15.350 GHz, rectangular Remec flange input

$3,718⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

Freight: this item requires LTL shipping

DOCUMENTS

Specs

COMMSCOPE VHLPX3 15 1WH A PRODUCT SPECIFICATIONS

Description

Manufacturer

CommScope

Model #

VHLPX3-15-1WH/A

Description

COMMSCOPE's 14.400 – 15.350 GHz 3 ft ValuLine high performance low-profile antenna, dual-polarized, UG-541A/U flange, white antenna, composite broadband gray radome without flash, standard packaging—one-piece reflector

Minimum Front Back Ratio

69 dB

Radome Included

Yes

Return Loss

17.7 dB

Maximum Rated Wind Velocity

155 mile/h

Flange Type

UG-541/U

Gain, High

41.4 dBi

Maximum VSWR

1.30:1

Diameter

3 ft

Color

Gray, White

Gain, Low

40.8 dBi

Vertical Beamwidth

1.5 deg

Polarization

Dual

Horizontal Beamwidth

1.5 deg

Item Weight

37.0 lb

Gain, Middle

41.1 dBi

Specific Frequency

14.400-15.350 GHz
