Sinclair Technologies SD212-HF2P2SNM
Regular price
$1,59995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
SHA211-SF1SNM
Product Description

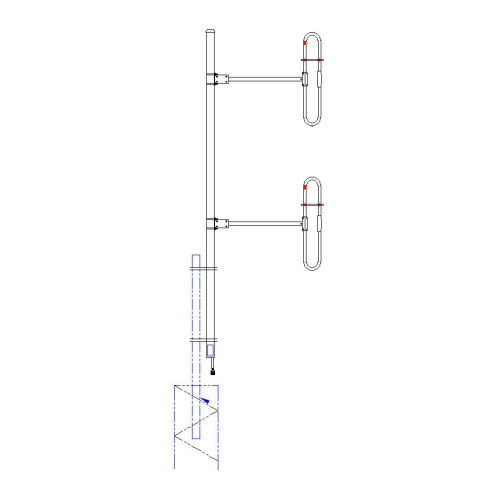

Rugged heavy-duty two-bay exposed dipole antenna that covers the 138 – 174 MHz band. It has 5 dBd gain with a bidirectional pattern. The antenna comes with an N Male connector which is terminated on a 1 ft cable. The antenna can be top or side-mounted.
Item Height
120 in
Lightning Protection
DC Ground
Vertical Beamwidth
17 deg
Item Width
42.75 in
RF Connectors
N Male
Item Length
4.75 in
Polarization
Vertical
Gain dBi
7.1 dBi
Item Weight
39.5 lb
Gain dBd
5 dBd
Maximum Power
250 W
Connector Placement
Pigtail
Maximum Rated Wind Velocity
175 mile/h
Maximum VSWR
1.5:1
Antenna Pattern
Bidirectional
Type of Hardware Included
None
Jumper Included
Yes
Specific Frequency
138-174 MHz
