Description
Description
Manufacturer
Sinclair Technologies
Mfg. Model No.
MR256N-2
Product Description

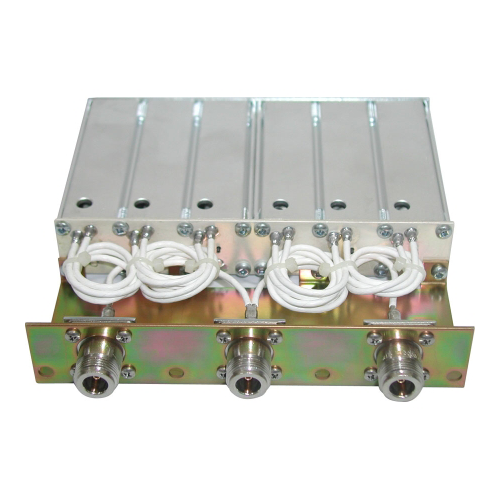

148 – 160 MHz mobile duplexer. Notch (reject) type. 6 cavities. 4.5 – 10 MHz separation. N Female
Operating Temperature Range
-30-60 deg C
Item Length
7 in
Maximum Power Input
50 W
Maximum VSWR
1.5:1
Insertion Loss (Rx/Ant-dB)
1.5
RF Connectors
N Female
Number of Cavities
6
Insertion Loss (Tx/Ant-dB)
1.5
Item Height
1.31 in
Minimum Separation
4.5
Minimum Isolation
80 dB
Frequency Range
148-160 MHz
