Description
Description
Manufacturer
Telewave, Inc.
Product Description

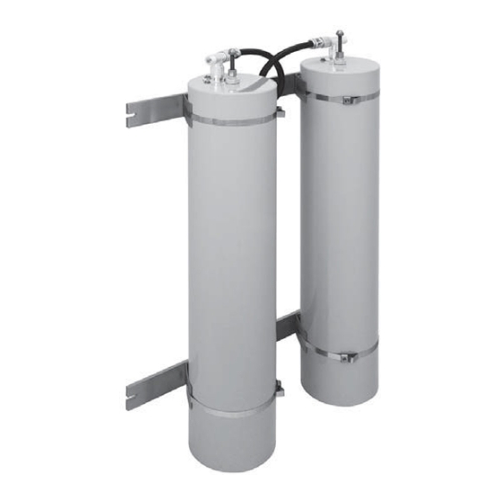

TELEWAVE, INC.'s TWPC-1505-2 148 – 174 MHz 5 in dual bandpass cavity. 150 – 350 W based on coupling. N Female. *Factory tuned (frequency needed).
Operating Temperature Range
-30-70 deg C
Insertion Loss Range
0.5-2.0 dB
Frequency Range
148-174 MHz
Maximum VSWR
5 in
Cavity Size
1.5:1
Number of Cavities
1
Tuning Method
Factory Tune
Maximum Power Input
350 W
RF Connectors
N Female
Filter Type
Bandpass
