TeleWave TWR4-150
Regular price
$2,24595
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Telewave, Inc.
Mfg. Model No.
TPCP-1542C
Product Description

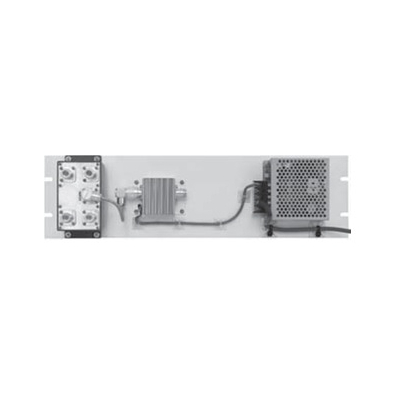

TELEWAVE's TWR4-150 148 – 174 MHz receiver distribution panel provides four (4) isolated 50 Ohm receiver outputs from one input, in a compact package. The antenna port is tuned with a matching network to insure a balanced input. Please specify the exact frequencies when ordering.
Item Length
5.25 in
Bandwidth
36 MHz
Tuning Method
Factory Tune
Specific Frequency
148-174 MHz
DC Input Voltage Range
12-24 V
3rd Order Intercept
36 dBm
AC Input Voltage Range
100-240 V
Maximum VSWR
1.3:1
Noise Figure
2.5 dB
Ask Customer
What are the exact frequencies?
Number of Channels
4
Item Weight
4 lb
RF Input Connector
N Female
RX/RX Isolation
25 dB
Item Height
3 in
RF Output Connector
N Female
Item Width
19 in
