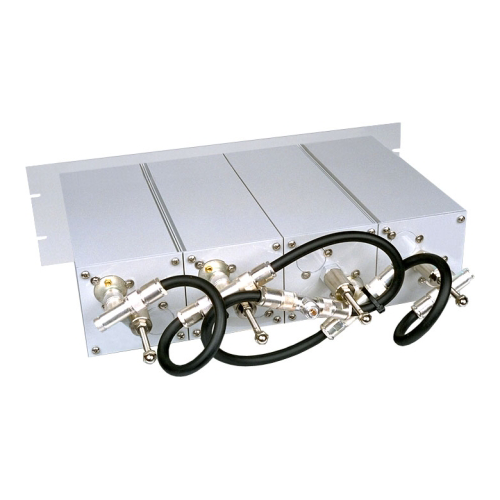

TeleWave TPRD-1544C
MPN TPRD-1544CSKU 13025Product type Radio Accessory
Regular price
$3,55908
Unit price
Ships Separately: this item requires its own package
Key Specifications
- Frequency Range
- 148-156 MHz, 156-164 MHz, 164-174 MHz
Product details
Manufacturer
Telewave, Inc.
Mfg. Model No.
TPRD1544C
Product Description
TELEWAVE's TPRD1544C 148 – 174 MHz pass-reject duplexer. 350 W, 600 kHz minimum frequency separation. 1.5 dB insertion loss, 70 dB isolation N Female termination. TESSCO tuned
Operating Temperature Range
-30-70 deg C
Item Length
15 in
Maximum Power Input
350 W
Maximum VSWR
1.5:1
Insertion Loss (Rx/Ant-dB)
1.5
RF Connectors
UHF Female, N Female
Tuning Method
TESSCO or Field Tune
Number of Cavities
4
Insertion Loss (Tx/Ant-dB)
1.5
Item Height
5-1/4 in
Minimum Separation
0.6
Minimum Isolation
70 dB
Item Width
19 in
Frequency Range
148-174 MHz
