EM Wave EM-P91201-SF
MPN EM-P91201-SFSKU 13027Product type Handheld Antenna
Regular price
$2995
Unit price
Key Specifications
- Frequency Range
- 380-406 MHz, 406-420 MHz, 420-430 MHz, 430-440 MHz, 440-450 MHz, 450-460 MHz, 460-470 MHz, 470-490 MHz, 490-512 MHz, 698-758 MHz, 758-806 MHz, 806-824 MHz, 824-869 MHz
- Connector
- SMA
- Antenna Design
- Omnidirectional
Product details
Manufacturer
EM Wave, Inc
Product Description

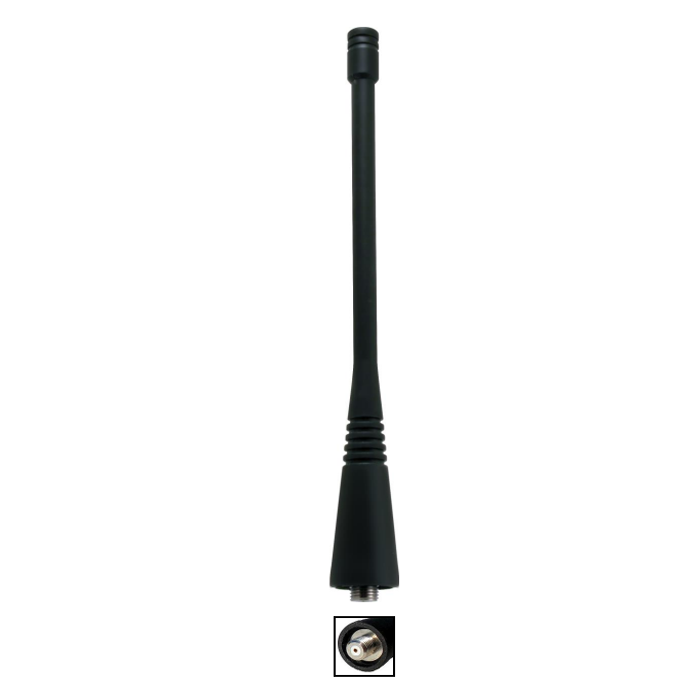

Multi-Band Portable Antenna, Motorola TM XTS and APX Series OEM Replacement, 380-520 MHz / 698 - 870 MHz
- Flexible
- Rugged
- Weatherproof
- Integrated/Molded Cap
- Direct fitment with OE portable radios
Frequency Band
380 – 520 / 698 - 870 MHz
VSWR
<2.0:1, typ.; 2.6:1 max @380 MHz
Impedance
50Ω
Gain
2.0 dBi
Power Rating
10 Watts
Polarization
Vertical
Radiation Pattern
Omnidirectional
Length
5.3 ±.125 in. (135±3mm)
Connector
SF Type (SMA Female)
Over-Mold Material
TPEE
Connector Material, Finish
Brass, Nickel Plating
Weight
16g
Operation Temperature
-20°C to 65°C
Pull Force, Housing
6 kgf
Applied Torque, Housing
5 kgf-cm
