EMR 64536/ENC

MPN 64536/ENCSKU 13035Product type Radio Accessory

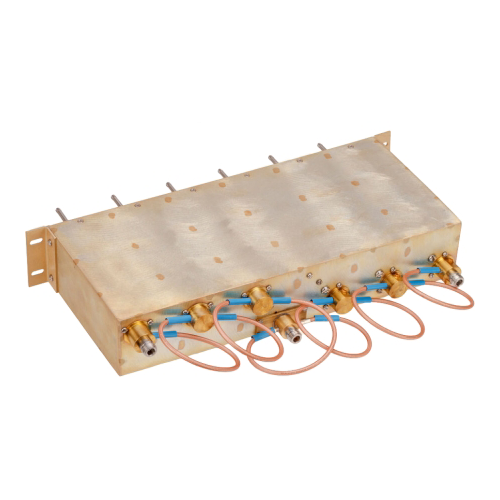

6 cavity 144-174 MHz duplexer with 3 MHz separation and 90 dB isolation, rated 100W with N female ports

Regular price $1,87790

Key Specifications

Frequency Range
148-156 MHz, 156-164 MHz

Product details

Manufacturer

EMR Corp

Mfg. Model No.

64536/ENC-T1

Product Description

EMR CORPORATION's 150 – 160 MHz duplexer, 3 MHz frequency separation, 1.5 dB insertion loss, 90 dB isolation, N Female termination, 100 W, TESSCO tuned, specify TX and RX frequencies

Item Length

7 in

Maximum VSWR

1.25:1

RF Connectors

N Female

Insertion Loss (Tx/Ant-dB)

1.5

Minimum Separation

3 MHz

Finish

Chem Film

Maximum Power Input

100 W

Item Height

9.75 in

Cavity Size

3 in

Frequency Range

150-160 MHz

Tuning Method

TESSCO or Field Tune

Number of Cavities

4

Insertion Loss (Rx/Ant-dB)

1.5

Item Width

19 in

Minimum Isolation

90 dB
