Description
Description
Manufacturer
EMR Corp
Mfg. Model No.
64316-0/MC(5B)
Product Description

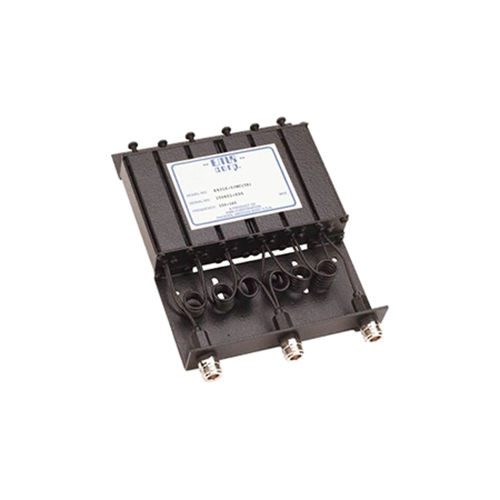

150 – 160 MHz mobile duplexer, 50 W, 70 dB isolation, 4.6 – 6 MHz separation, 1.2 dB maximum insertion loss, N Female termination
Operating Temperature Range
-30-60 deg C
Insertion Loss (Tx/Ant-dB)
1.2
Number of Cavities
6
Item Width
6-1/8 in
Item Length
8.5 in
Minimum Isolation
70 dB
Minimum Separation
4.6 MHz
Frequency Range
150-160 MHz
Item Height
1-3/8 in
Insertion Loss (Rx/Ant-dB)
1.2
Maximum VSWR
1.25:1
Maximum Power Input
50 W
RF Connectors
N Female
