Description
Description
Manufacturer
Kathrein-Scala
Model #
YA7-155/URM
Description

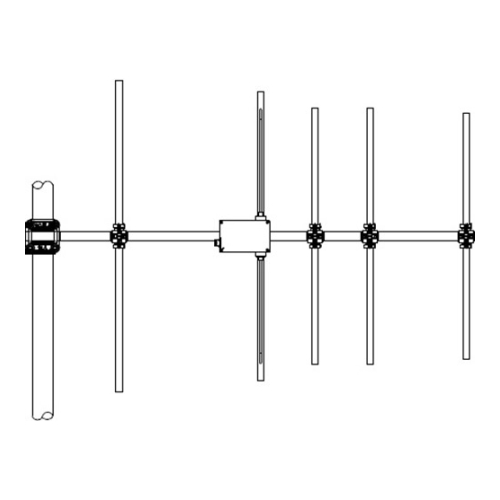

KATHREIN's 150 – 160 MHz five-element Yagi. Vertical or horizontal polarization. N Female termination.
Item Weight
10 lb
Tuned Frequency (MHz)
N/A
Type of Jumper Included
Not Specified
Type of Hardware Included
No
Item Height
39 in
Maximum Power
250 W
Specific Frequency
150-164 MHz
RF Connectors
N Female
Gain dBd
6.85 dBd
Item Width
5 in
Maximum Rated Wind Velocity
100
Vertical Beamwidth
58 deg
Item Length
55 in
Horizontal Beamwidth
80 deg
Lightning Protection
DC Ground
Gain dBi
9 dBi
Maximum VSWR
1.35:1
