MPN: DJ-VX50T
BRAND: Alinco
PRODUCT TYPE: Handheld Radio
SKU: 13087

Alinco DJ-VX50T

Field Programmable Dualband,V/V-U/U, 200 memory channels

Regular price $11995
Shipping calculated at checkout.

DOCUMENTS

Brochure

DJ VX50T

Description

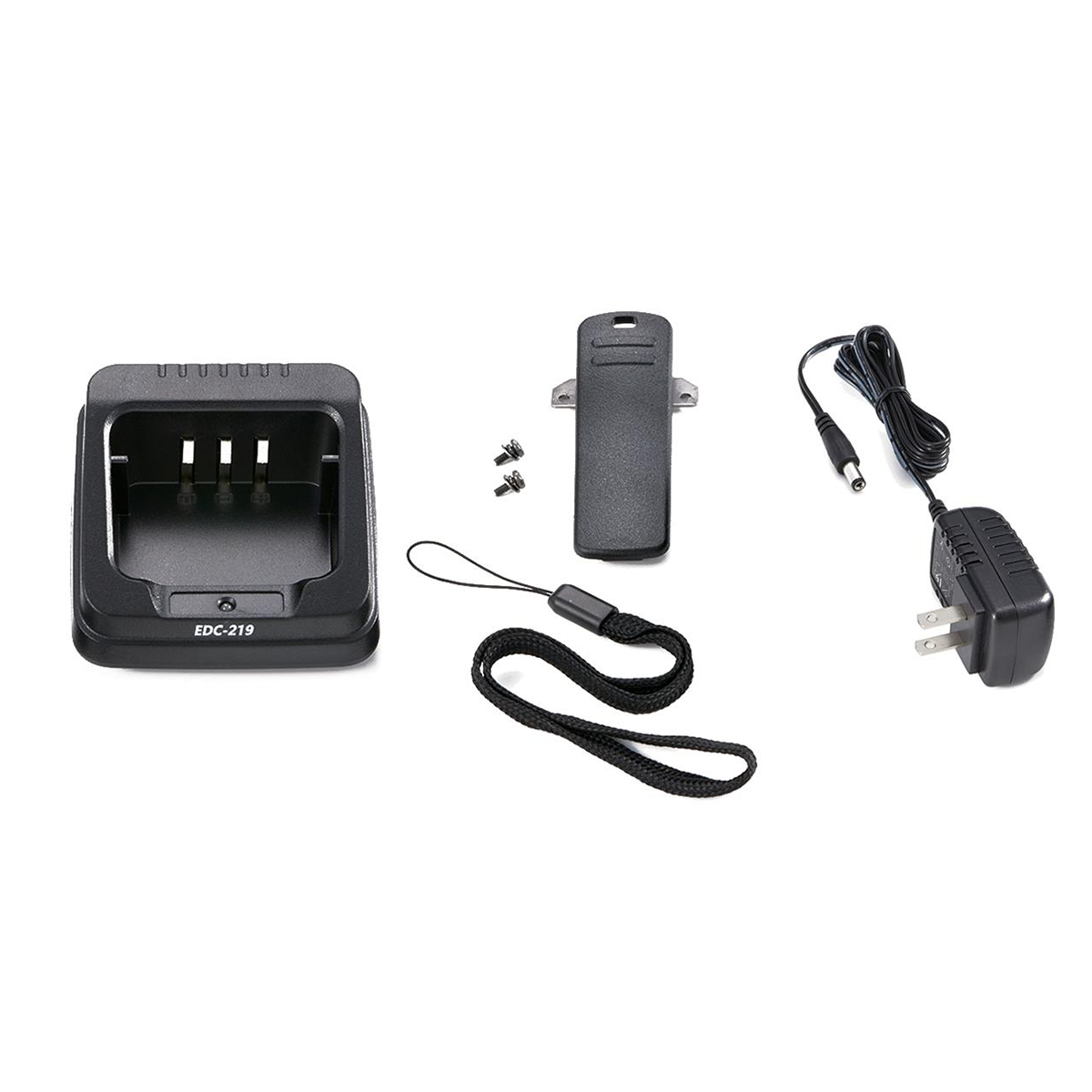

Radio Includes:

  • EBP-101 Li-ion Battery Pack 1800mAh 7.4V
  • EDC-219 Li-Ion Rapid Charger
  • EDC-305 AC Adapter
  • EA-253 Antenna (SMA)
  • EBC-51 Beltclip
  • Instruction Manual

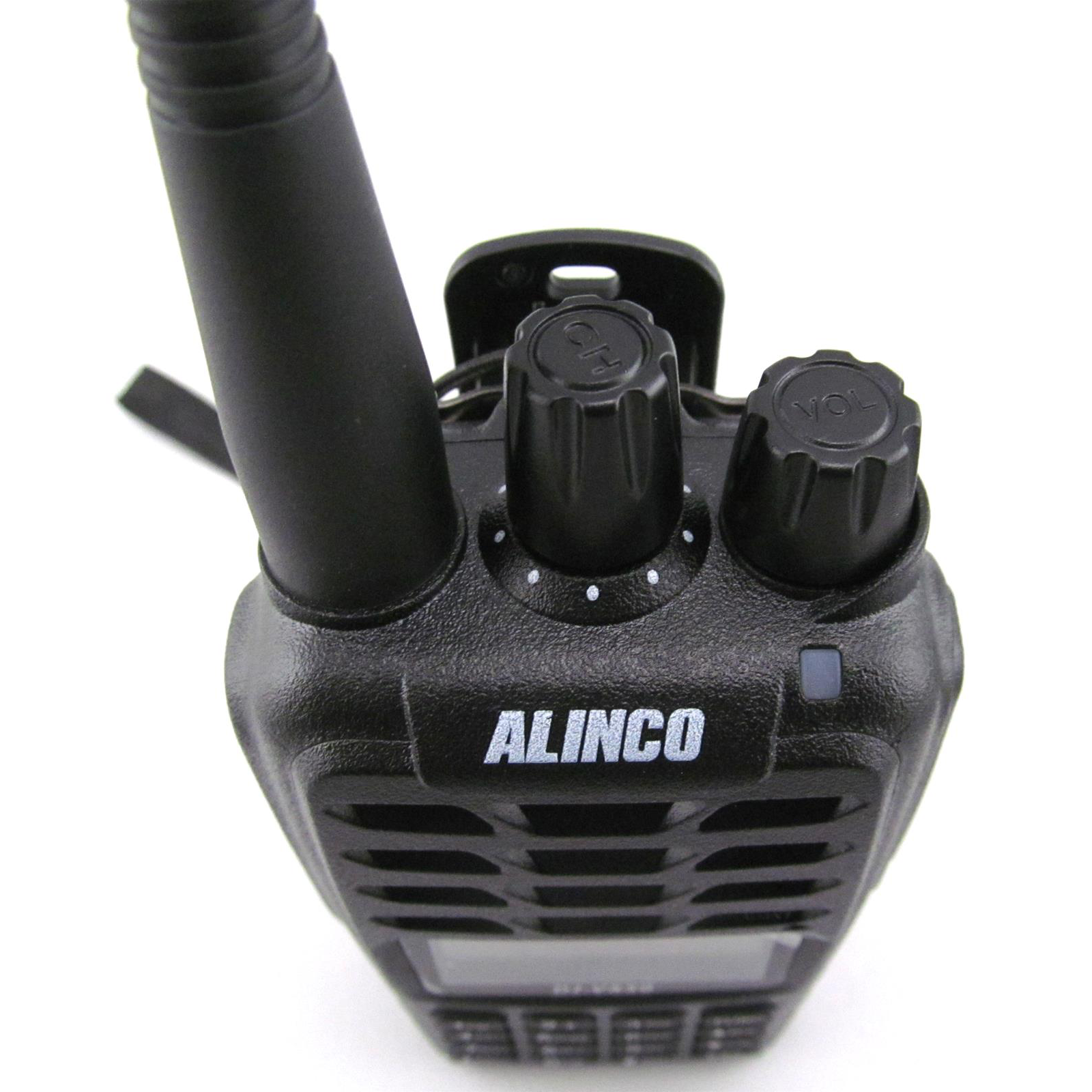

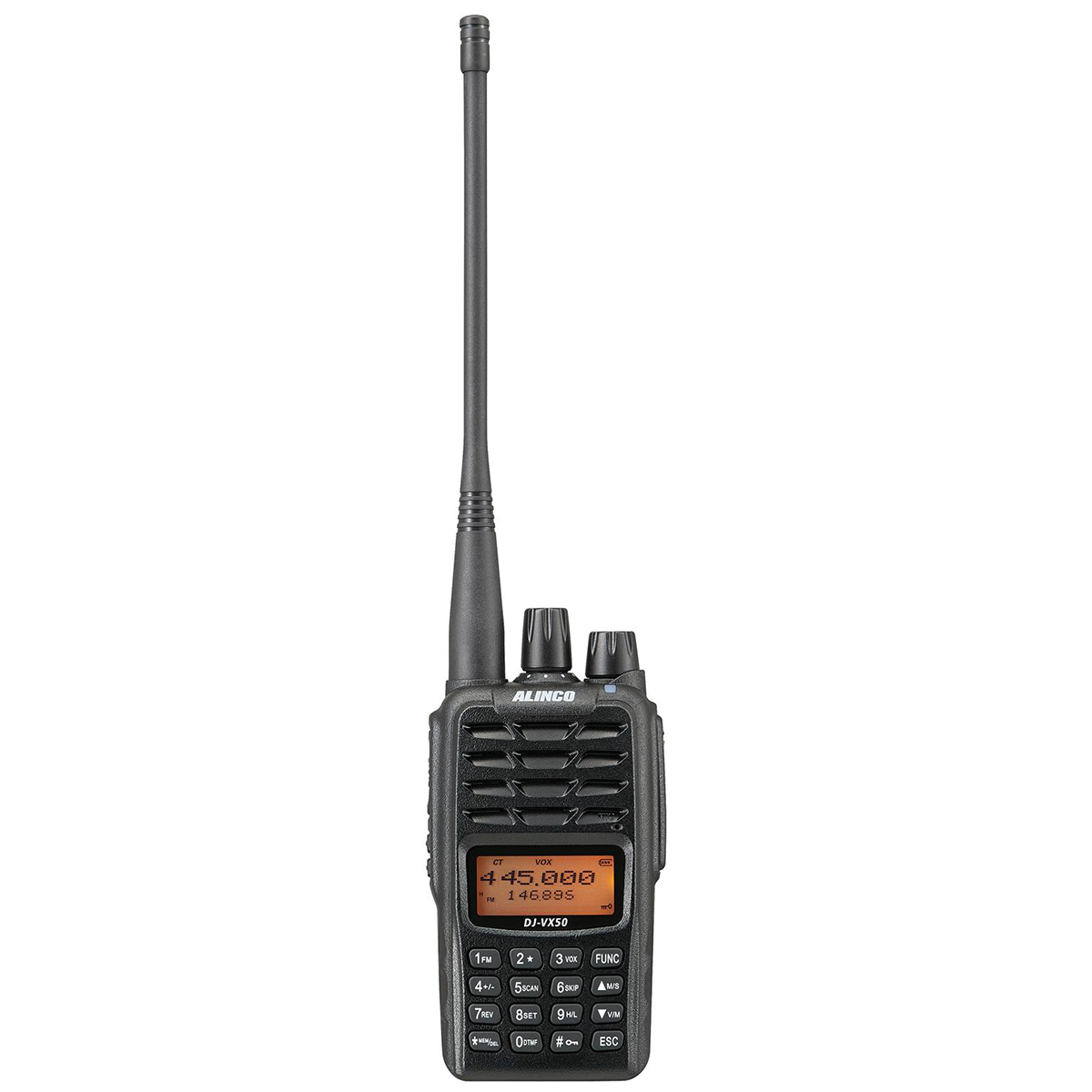

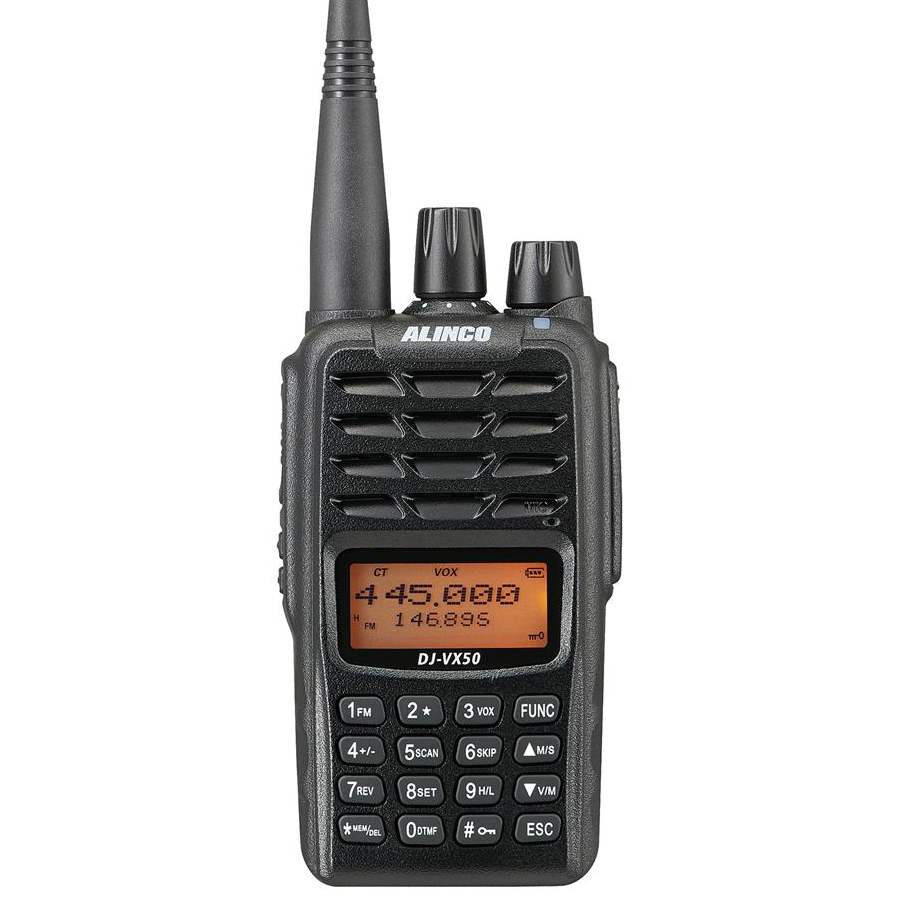

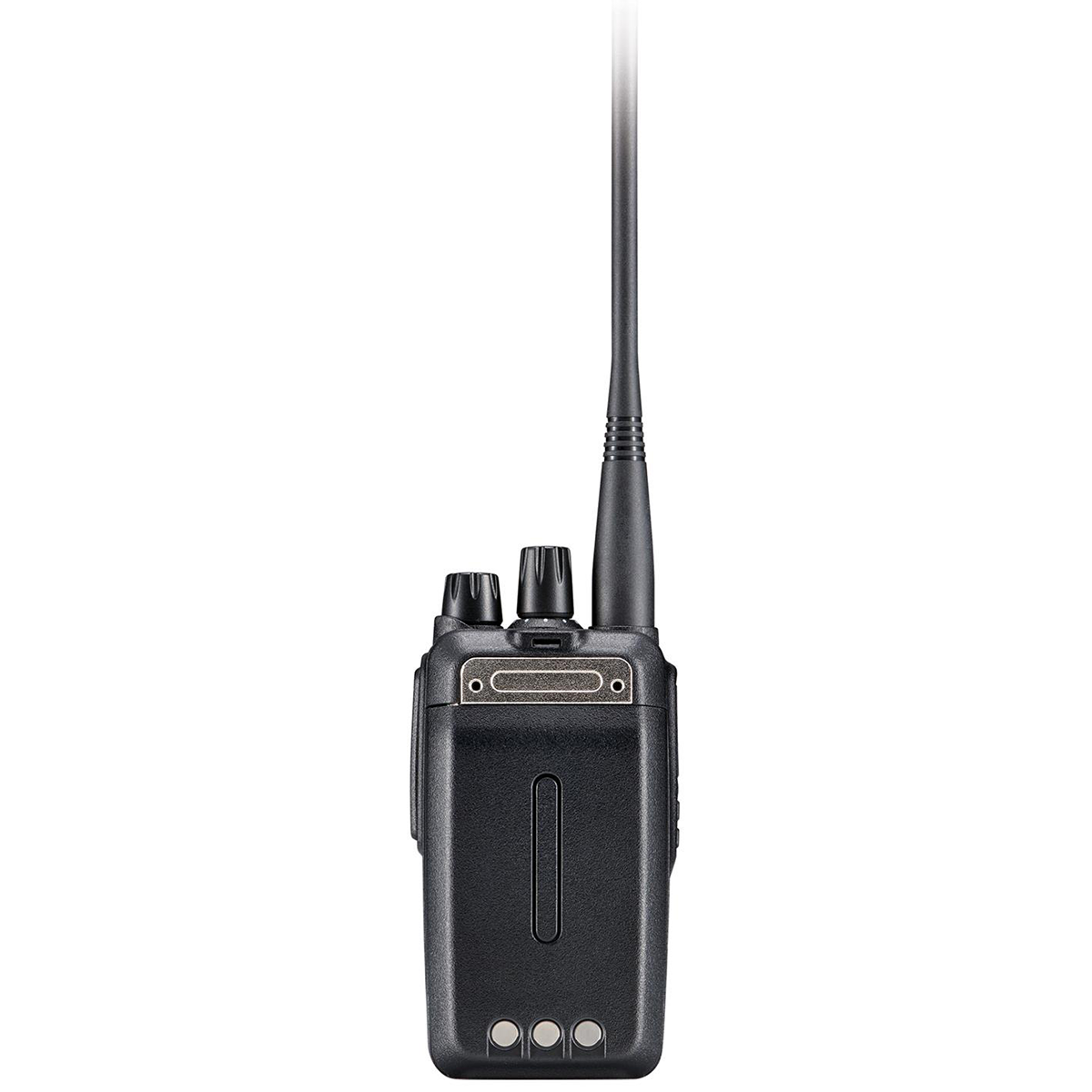

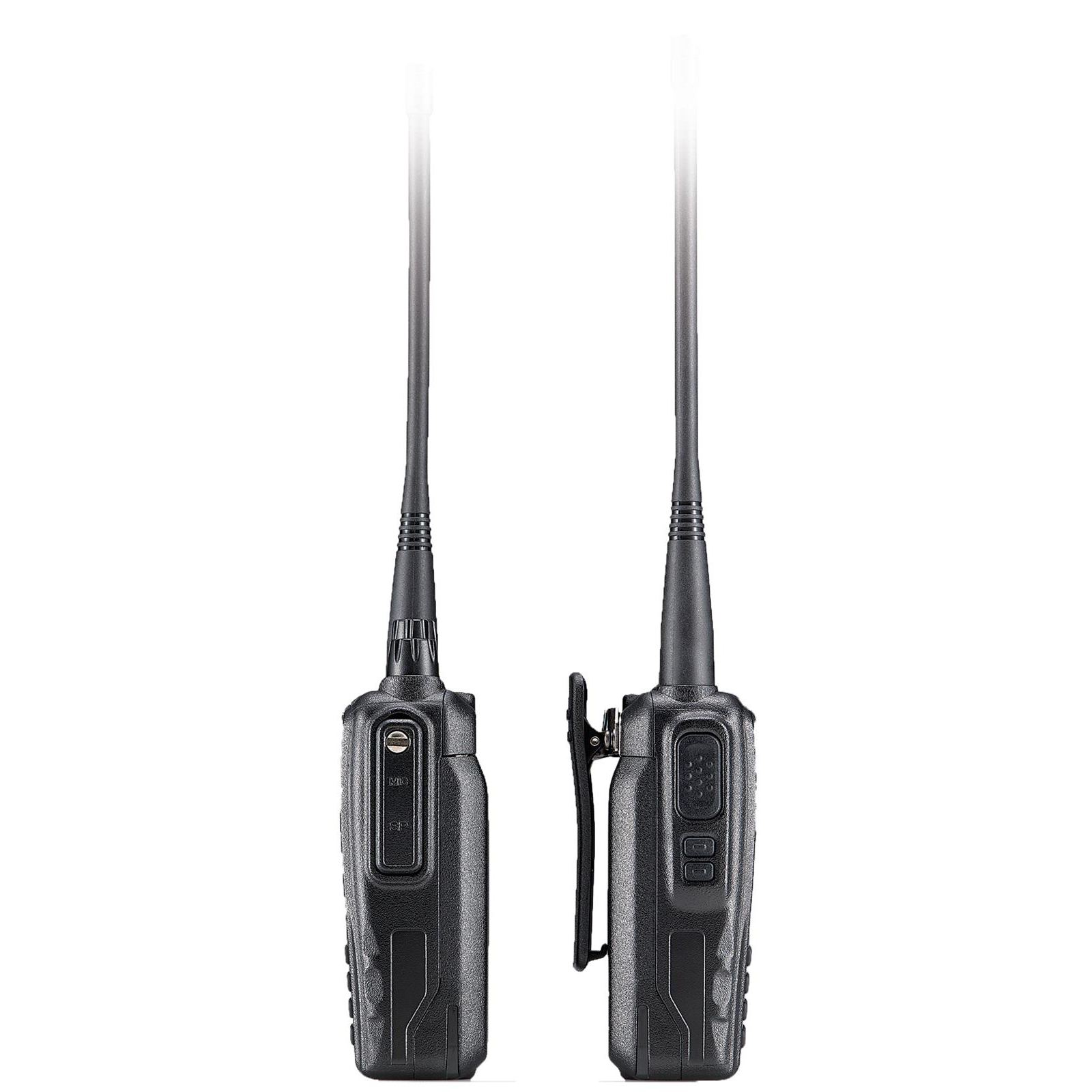

Full of advanced features, the DJ-VX50 offers Professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. In a compact IP67 dust/water proof body, CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters. In addition, DJ-VX50 sports VHF AM aircraft, FM broadcast and NOAA Weather Channel receiver for an extra listening pleasure! A Li-lon battery pack and a stand charger are standard, adding power and convenience. The DJ-VX50 places one of the world's most versatile transceivers at your command, at ALINCO's affordable price!

ALINCO DJ-VX50T Features

  • 3 Color-selectable display and keypad
  • Semi-Duplex Dualband,V/V-U/U, FM broadcast, VHF AM aircraft and NOAA Weather Channel receiver
  • 200 memory channels, any mix of VHF/UHF
  • Professional-grade signaling features include CTCSS, DTMF, DCS, 2Tone/5Tone, Tone-burst and more with Talk-around, Reverse, BCLO and TOT
  • Variety of scanning modes including Programming, CTCSS/DCS Tone, VFO, FM Broadcast, NOAA channels and Memory with skip features
  • Internal VOX
  • Alphanumeric channel labels
  • Direct frequency input from keypad
  • Auto-repeater shift setting
  • Variety of scanning modes
  • Wide and narrow FM TX/RX
  • High power Li-Ion battery pack, stand charger and beltclip included
  • 1800mAh Li-ion battery
  • IP67 Rated (Dust and Water Protection)
  • FCC Certified



Specifications

RX Frequency range:

136-174MHz, 400-470MHz, WFM: 76-107.95MHz/ AM: 118-135.995MHz, FM: 162.400 - 162.550MHz

Modulation:

F3E(16K0F3E / 11K0F3E / RX only WFM, AM)

Frequency step:

2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz

Frequency stability

±2.5ppm

Antenna impedance

50 ohms

Temperature range:

-4°F~131°F (-20°C ~ +55°C)

Dimensions

4.65×2.32×1.50 in (118×59×38 mm) with Battery pack/ant

Weight (w/Battery)

Approx. 230g or 8.11oz inclusive of battery pack and antenna

Transmitter

Output power

5W (VHF) 4W (UHF) / 2W / 1W

Spurious emission:

-60dB or less

Max. deviation:

FM : +/- 5KHz / +/- 2.5KHz

Receiver

System

Direct-conversion

Sensitivity

Wide -12dBu / Narrow -9dBu

Adjacent Channel Selectivity

Wide More than 65dB / Narrow More than 60dB

Audio output:

1W (10% distortion)
