Radio Includes:
- EBP-87 Li-ion Battery Pack 1500mAh 7.4V
- EDC-189 Li-Ion Rapid Charger
- EDC-146 AC Adapter
- EA-228 Antenna
- EBC-34 Beltclip
- Instruction Manual

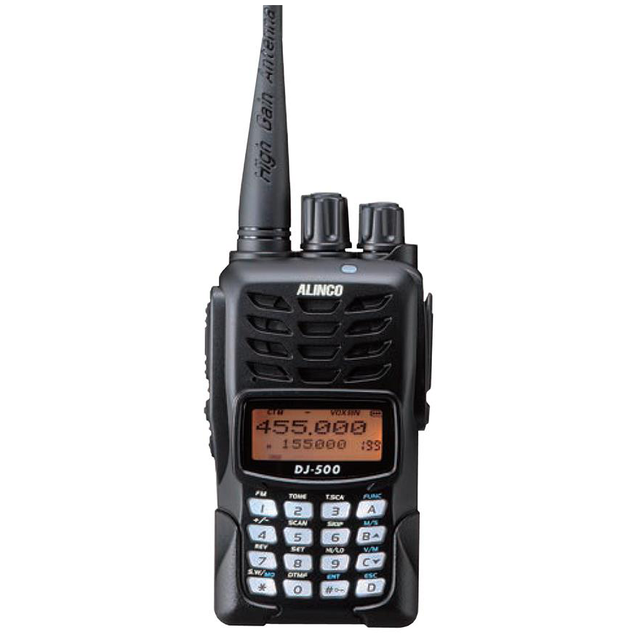

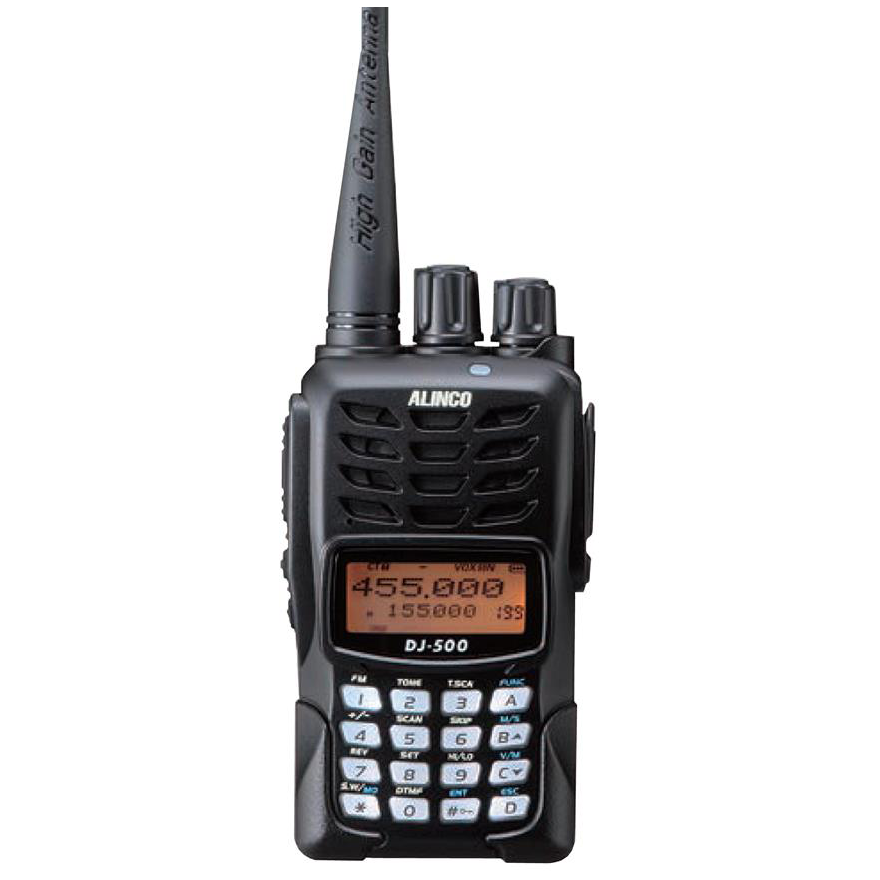

Full of advanced features, the DJ-500TB offers powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard, along with a variety of tone bursts for repeater access or selective calling. A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-500TB looks simple, but remember, looks can be deceiving!
DJ-500TB Features
- Large, dot-matrix, 3 color-selectable display and keypad
- FCC Part 90 Certified for commercial use.
- Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
- 200 memory channels, any mix of VHF/UHF
- Internal VOX
- Alphanumeric channel labels
- Direct frequency input from keypad
- Variety of scanning modes
- IP54 dust/splash proof, MILSPEC vibration/shock compliant
- Wide and narrow FM TX/RX1
- 12Vdc input using an optional cigar-socket adapter
- Wire cloning capability
Specifications
Frequency range:
[TX/RX] 136-174MHz. 400-480MHz, RX only: 76-108MHz (FM)
Modes
F3E(16K0F3E / 11K0F3E / RX only WFM)
Antenna Impedance
50 ohms
Frequency step
2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50 KHz
Memory channel
200 memory channels in total + 1 call channel/band + 1 Repeater-Access parameter memory/band
Frequency stability
+/- 2.5ppm TCXO
Power supply requirement
7.4V (Battery)
Current consumption:
1600mA TX / 320mA receive at Max audio output 100mA
Temperature range:
-4°F～131°F (－20°C ～ +55°C)
Dimensions:
2.32W×3.86H×1.38D in (59.0W×98.0H×35.0D mm)
Weight
Approx. 227g or 8.01oz inclusive of battery pack and antenna
Transmitter
Output power
5 W/ 2.5 W/ 1W (Selectable)
Modulation system
FM
Spurious emission
Less than -60 dB
Maximum frequency deviation
FM : +/- 5KHz NFM: +/- 2.5KHz
Receiver
System
Direct-conversion
Sensitivity (-12dB SINAD)
Wide -12dBu / Narrow -9dBu
Intermediate frequency
1st IF 38.85MHz 2nd IF 450kHz
Selectivity
-6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less
Audio output power
1W (10% distortion)
