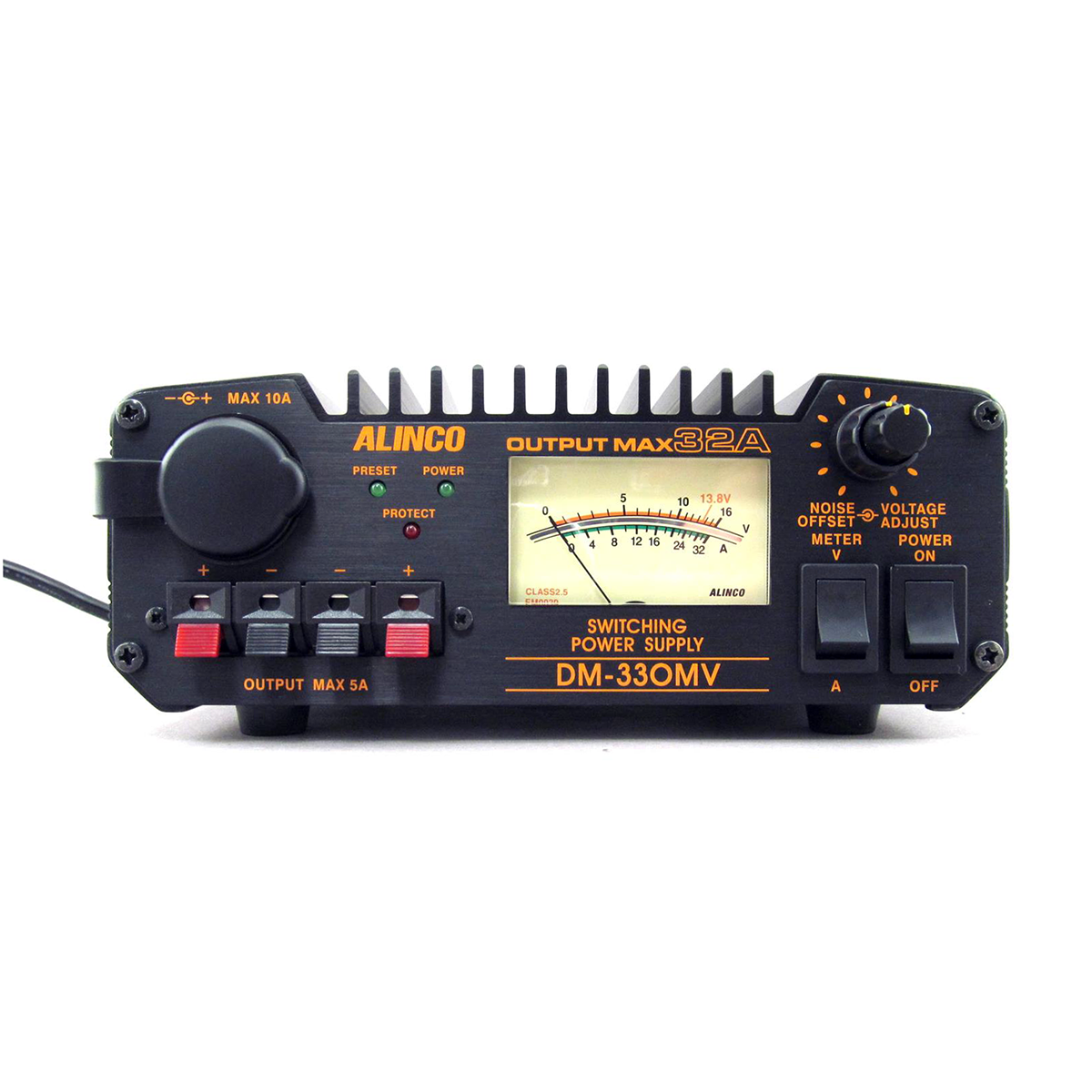

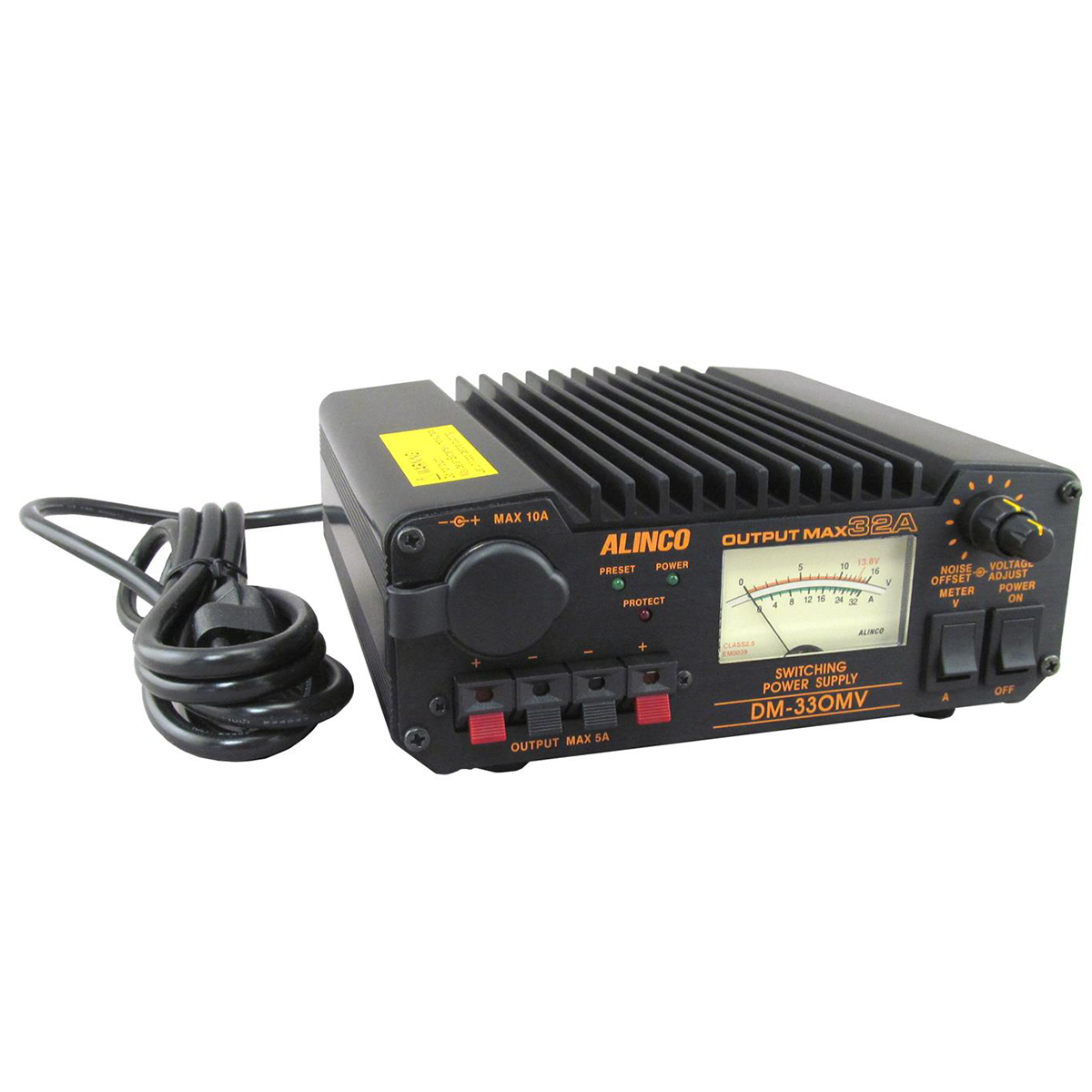

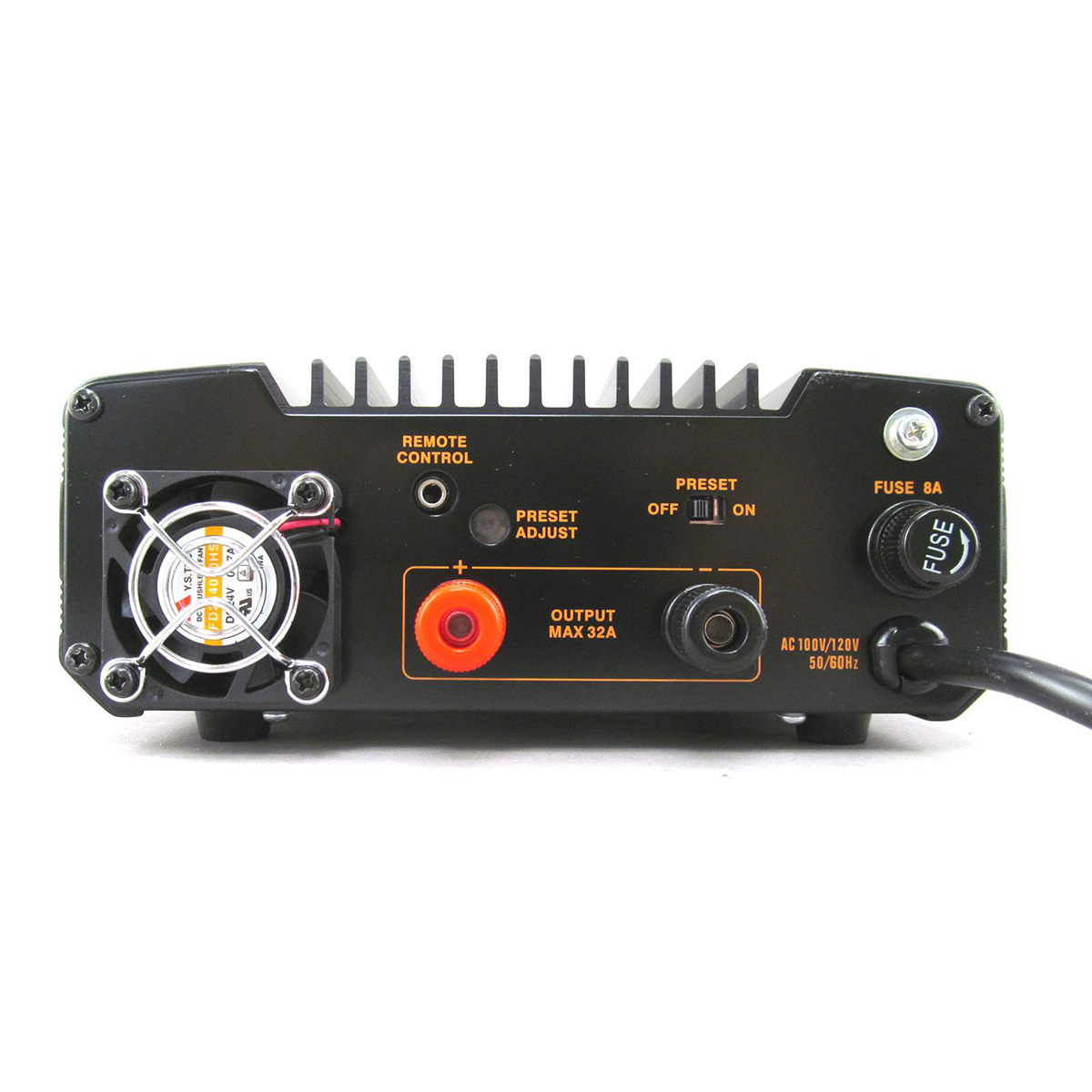

Alinco DM-330MVT

POWER SUPPLIES OF THE NEXT GENERATION, ENGINEERED WITH ALINCO'S FINEST COMMUNICATION TECHNOLOGY, PHILOSOPHY WITH UTILIZING HIGHEST QUALITY COMPONENTS AND "CLEANEST POWER SUPPLY IN IT'S CLASS".

Features

• XThe combination of high-quality space-saving components and high efficiency switching technology made it possible for the DM-330MV to be super-compact and easy to carry for portable operations and still generate a high continuous output !
• Alinco's communication technology has created a patent-pending Noise-Offset circuit to eliminate the pulse-noise of the switching circuit for the customer who demands more.
• Safety protections are also very important. The DM-330MV comes with short circuit protection, a current-limiting system and extreme temperature protection.
• The programmable pre-set voltage function makes the DM-330MV even easier to use. Just store the most frequently used voltage in the memory, and it is constantly ready to go.
• Vast output terminal convenience is just one more benefit of the DM-330MV ! A cigar-plug socket (Max 10A), a set of Max current terminals, and 2 sets of snap-in terminals (Max 5A) are conveniently laid-out and offer numerous variations for its operation.
• A big, highly visible, back-lit Amp/V meter displays the status of the operation for added convenience.
• Input voltage: AC 120VAC (50/60Hz)
• Output voltage : 5 to 15VDC variable
• Output voltage variation: less than 2%
• Protection: short-circuit, Automatic current limiting over 32A over-temperature
• Output current: 32A(max), 30A(continuous)
• Ripple: less than 15mVp-p at rated load
• Fuse: 8A
• Meter: single volt/current meter, back-lit
• Size: 175(w) x 67(h) x 165(d) mm
• Weight: approx. 2 Kg (4 lbs)
