Description
Description
Manufacturer
Times Microwave Systems
Model #
LMR®-240-PVC-W
Product Description

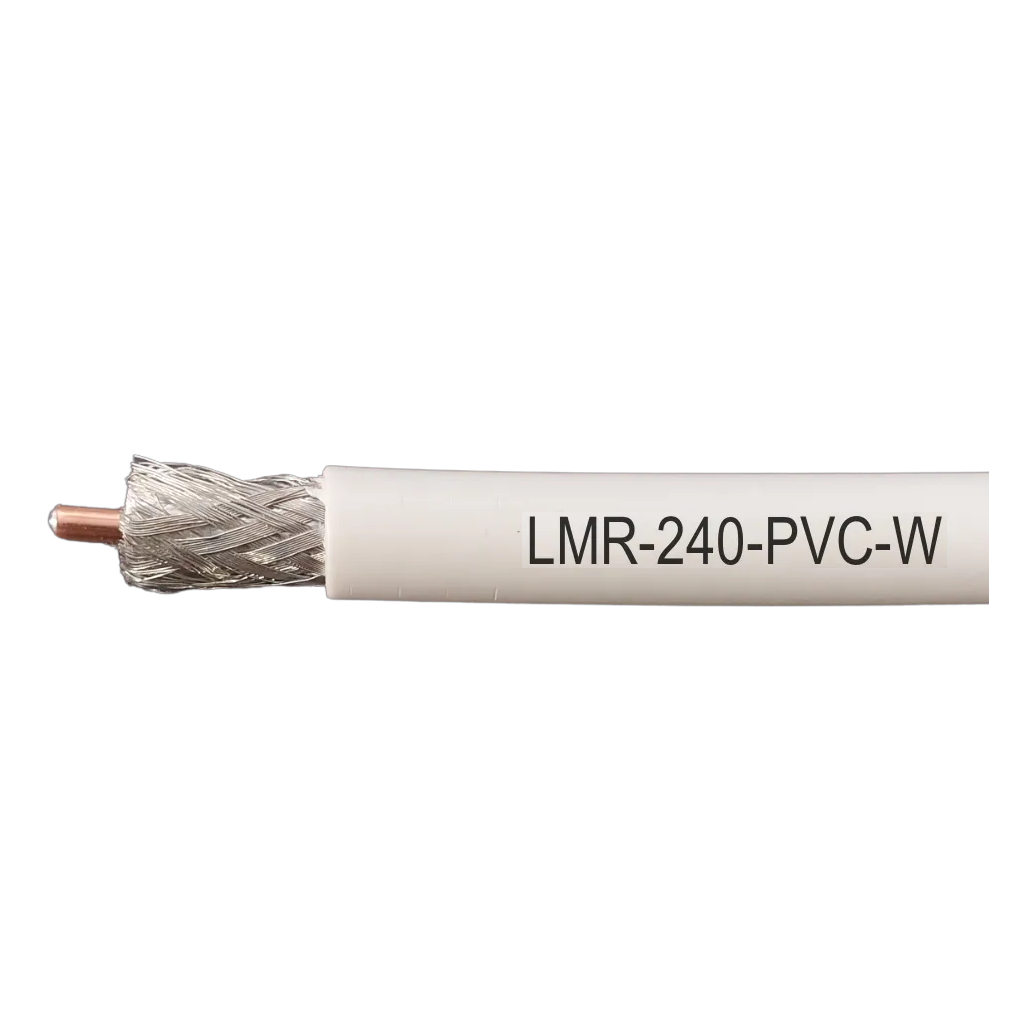

Times Microwave's LMR®-240-PVC-W low loss LMR®-240 coaxial cable with UV white jacket offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connection. This 1/4 in 50 Ohm coaxial cable has a solid bare copper center conductor and stranded outer conductor. Low loss is achieved through use of the 90 % braided shield. A foam polyethylene serves as insulation. The LMR®-240 transmission line can be used in almost any application where handling characteristics, improved shielding, and low loss is required. The LMR®-240 cable is similar in size to RG-8X cables and fits LMR®-240 connectors. It is sold per foot.
Cable Type
LMR®-240-PVC
RF Impedance
50 Ohms
Center Conductor Material
Copper
Center Conductor Diameter
.056 in
Center Conductor Construction
Solid
Jacket Color
White
Dielectric Insulation
PE
Jacket Material
PVC
Loss @ 400 MHz
4.973 dB
Loss @ 100 MHz
2.453 dB
Loss @ 1000 MHz
7.985 dB/100 ft
Loss @ 50 MHz
1.7 dB/100 ft
Loss @ 900 MHz
7.6 dB
Nominal Core O.D.
0.155 in
Other Spec
Ultra Violet White Jacket
Nominal O.D.
0.24 in
Outer Conductor Material
Tinned Copper
Reel Type
B
Shield %
90%
Strip Tool
CST-240A
VOP
84 %
