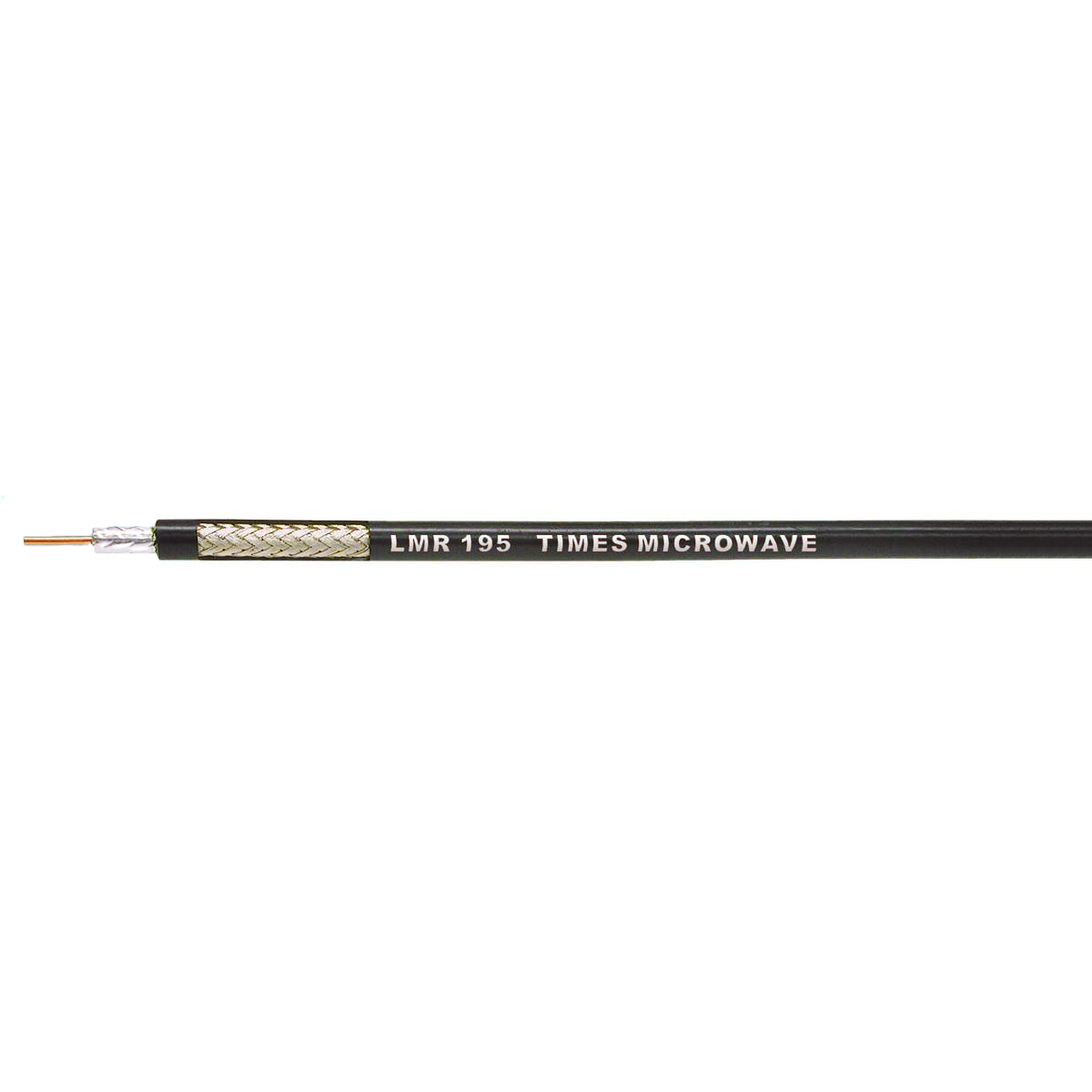

Times Microwave LMR®-195
MPN LMR-195SKU 1730Product type Cable Assembly
Regular price
$119
Unit price
Documents
Key Specifications
- Cable Type
- RG58/LMR195
- Jacket
- PE
- Diameter
- 0.195
Product details
Manufacturer
Times Microwave
Model #
LMR®-195
Product Description
50 Ohm Coaxial Cable
Cable Type
3/16" Braided
Shield %
100% Foil / 90% Braid
Impedance
50 Ohms
VOP.
80%
Center Conductor
0.037" Solid
Insulation
Polyethylene, Gas injected
Other Spec
Black Jacket/UV Resistant
Nom. core O.D. (in.)
0.110"
Nom. O.D. (in.)
0.195"
Losses Shown are based on 100 Foot Length
loss 50 MHz
2.60 db
loss 100 MHz
3.62 db
loss 400 MHz
7.33 db
loss 900 MHz
11.10 db
loss 1000 MHz
11.75 db
Nom. Capacitance (pF/ft)
24.3
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
10 Years
