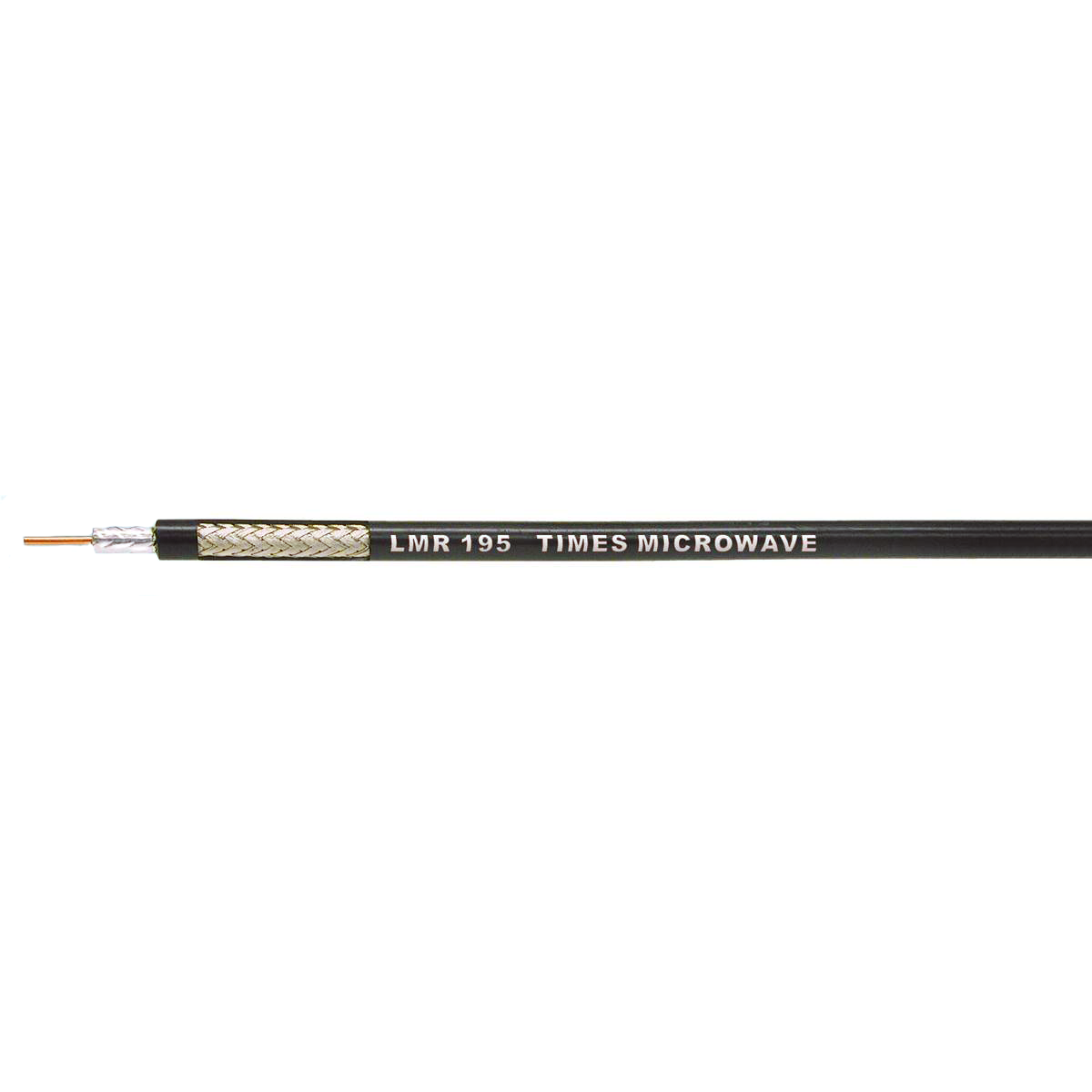

Times Microwave LMR®-195DB

MPN LMR-195DBSKU 1733Product type Cable Assembly

50 Ohm Coaxial Cable Direct Burial

Regular price $169
Documents

Key Specifications

Cable Type
RG58/LMR195
Jacket
Direct Burial
Diameter
0.195
Need a Jumper Assembly? Start Here

Product details

Manufacturer

Times Microwave

Model #

LMR®-195DB

Product Description

50 Ohm Coaxial Cable Direct Burial

Cable Type

3/16" Braided

Shield %

100% Foil / 90% Braided

Impedance

50 Ohms

VOP.

80%

Center Conductor

0.037" Solid

Insulation

Polyethylene Gas injected

Other Spec

UV Resistant, Watertight Flooded Braid

Nom. core O.D. (in.)

0.110"

Nom. O.D. (in.)

0.195"

Losses Shown are based on 100 Foot Length

loss 50 MHz

2.5 db

loss 100 MHz

3.49 db

loss 400 MHz

7.05 db

loss 900 MHz

10.7 db

loss 1000 MHz

11.27 db

Nom. Capacitance (pF/ft)

24.3

Sold By

Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.

Warranty

5 Years
