Description
Description
Manufacturer
Times Microwave
Model #

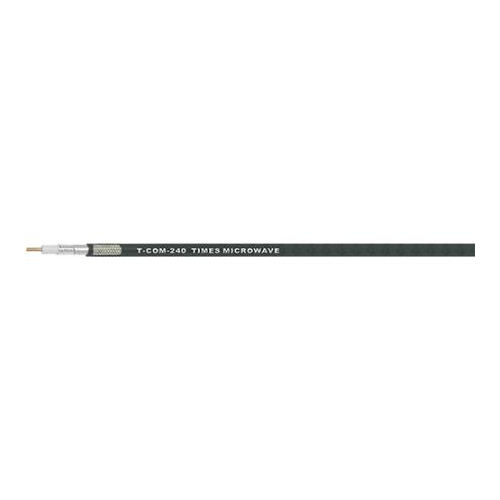

TCOM-240
Product Description
50 Ohm Coaxial Cable, Low Loss & Low PIM RG8X Cable
Cable Type
1/4" Braided
Shield %
90% Foil
Impedance
50 Ohms
VOP.
84%
Center Conductor
0.056" Solid
Insulation
Foam Polyethylene
Other Spec
Low Loss & Low PIM
Nom. core O.D. (in.)
0.056"
Nom. O.D. (in.)
0.240"
Losses Shown are based on 100 Foot Length
loss 50 MHz
1.7 db
loss 100 MHz
2.453 db
loss 400 MHz
4.973 db
loss 900 MHz
7.6 db
loss 1000 MHz
7.985 db
Nom. Capacitance (pF/ft)
24.2
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
