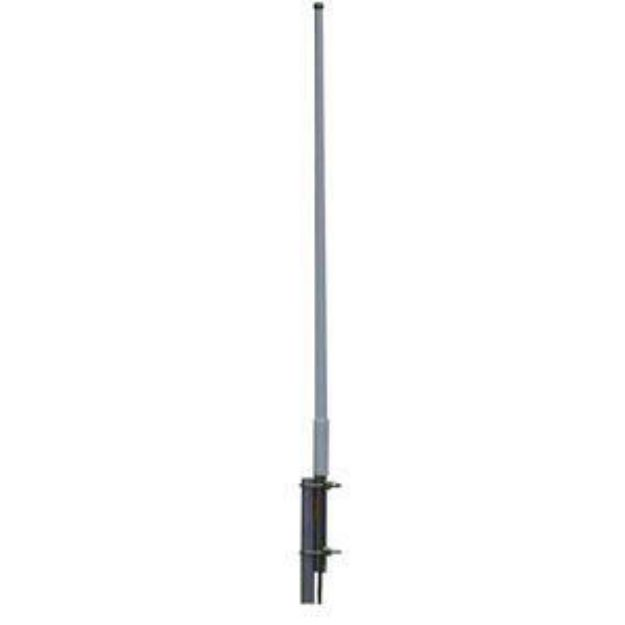

Laird TE Connectivity OD9-6
MPN OD9-6SKU 14747Product type Base Antenna
Regular price
$16995
Unit price
Key Specifications
- Antenna Design
- Omnidirectional
- Frequency
- 860-960 MHz, 900 MHz
- Bands
- Single Band
- Gain
- Medium Gain (3-6 dBi)
- Connector Type
- N Female
Product details
Manufacturer
Laird TE Connectivity
Model #
OD9-6
Product Description
6 dBi NLOS Series 900 MHz omnidirectional antenna. 100 W input, 10 deg. vertical beamwidth. Includes 18 in pigtail with N Female connector.
Gain dBi (dBi)
6 dBi
RF Connectors
N Female
Polarization
Vertical
Specific Frequency
860-960 MHz
Maximum VSWR
1.5:1
Maximum Rated Wind Velocity
125 mile/h
Electrical Downtilt
Fixed
Frequency Band
Cellular
