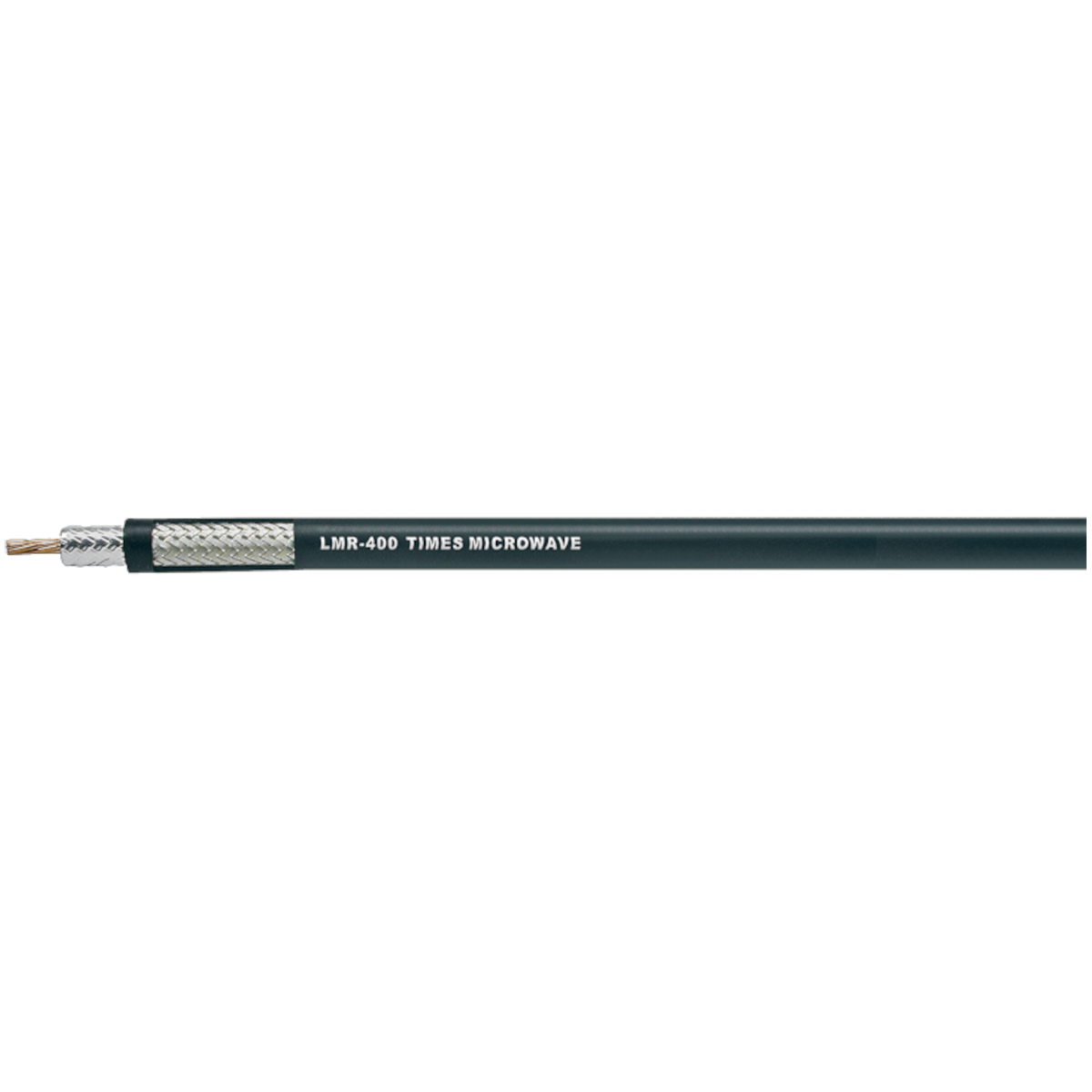

Times Microwave LMR®-400DB
MPN LMR-400DBSKU 1477Product type Cable Assembly
Regular price
$239
Unit price
Documents
Key Specifications
- Cable Type
- RG8/LMR400
- Jacket
- Direct Burial
- Diameter
- 0.405
Product details
Manufacturer
Times Microwave
Model #
LMR®-400DB
Product Description
50 Ohm Coaxial Cable -Low Loss Direct Burial RG8/U Cable
Cable Type
3/8" Braided
Shield %
100% foil 88% braided
Impedance
50 Ohms
VOP.
85%
Center Conductor
0.108" Solid
Insulation
Polyethylene Foam PE Jacket
Other Spec
Direct Burial
Nom. core O.D. (in.)
0.285"
Nom. O.D. (in.)
0.405"
Losses Shown are based on 100 Foot Length
loss 50 MHz
0.70 db
loss 100 MHz
1.2 db
loss 400 MHz
2.5 db
loss 900 MHz
3.9 db
loss 1000 MHz
4.11 db
Nom. Capacitance (pF/ft)
23.9
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
