Description
Description
Manufacturer
Commscope Corporation
Product Description

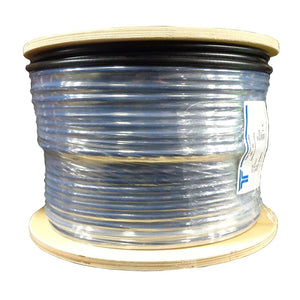

3/8" Foam Heliax Cable
Cable Type
3/8" Foam
Maximum Frequency
13.5 Ghz
Impedance
50 Ohms
VOP.
88%
Peak Power (W)
15.6 kW
DC Breakdown Voltage
2500
DC Resistance (ctr/shld) Ohms
1.06/0.87
Capacitance
23.0 pF/ft
Inductance
0.058 uH/ft
Outer Conductor
copper
Inner Conductor
Copper-Clad Aluminum
Diameter Over Jacket
0.44 in.
Min. Bending Radius
3.75 in.
Bending Moment (ft lbs)
1.4 ft lbs.
Weight Per Foot
0.08 lb/ft
Tensile Strength
250 lbs.
Flat Plate Crush Strength
110 lb/in.
Losses Shown are based on 100 Foot Length
Atten @ 30 MHz
0.563 db
Atten @ 50 MHz
0.730 db
Atten @ 150 MHz
1.29 db
Atten @ 450 MHz
2.29 db
Atten @ 824 MHz
3.17 db
Atten @ 894 MHz
3.31 db
Atten @ 960 MHz
3.44 db
Atten @ 1700 MHz
4.72 db
Atten @ 1920 MHz
4.92 db
Atten @ 2000 MHz
5.17 db
Avg Power @ 30 MHz
4.14 kW
Avg Power @ 50 MHz
3.19 kW
Avg Power @ 450 MHz
1.02 kW
Avg Power @ 800 MHz
0.748 kW
Avg Power @ 894 MHz
0.704 kW
Avg Power @ 960 MHz
0.678 kW
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
10 Years
