MPN: YS4705
BRAND: Laird TE Connectivity
PRODUCT TYPE: Base Antenna
SKU: 14877

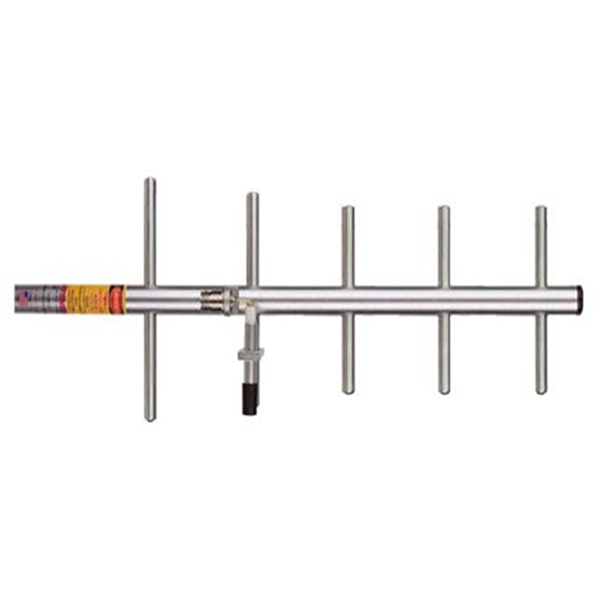

Laird TE Connectivity YS4705

470-490 MHz 5 element Silver Series yagi. 9.2 dB, 300 watt. Direct N female termination. Mounting hardware included.

$219⁹⁵

Shipping calculated at checkout.

Description

Manufacturer

Laird TE Connectivity

Model #

YS4705

Product Description

YS4705 470 – 490 MHz five-element directional silver series Yagi antenna with N Female termination. The internal matching design will not ice up, detune, or corrode. The antenna includes stainless steel brackets.

Gain dBi (dBi)

11.3 dBi

Gain dBd

9.2 dBd

Horizontal Beamwidth

110 deg

Maximum Power (W)

300

Polarization

Dual

RF Connectors

N Female

Vertical Beamwidth (Deg)

113

Specific Frequency

470-490 MHz

Maximum Rated Wind Velocity

100 mile/h

Maximum VSWR

2.0:1

Connector Placement

Side

Frequency Band

UHF
