MPN: OC69271-FNM
BRAND: Laird TE Connectivity
PRODUCT TYPE: Base Antenna
SKU: 14878

Laird TE Connectivity OC69271-FNM

Name: Laird TE Connectivity OC69271-FNM
Brand: Laird TE Connectivity
SKU: 14878
Price: 119.95 USD
Availability: InStock

698-960/1710-2700 MHz Multi-Band, LTE Direct Mount Omnidirectional Antenna, N Male connector

$119⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

518564 OC69271 FNM

Description

Manufacturer

Laird TE Connectivity

Model #

OC69271-FNM

Product Description

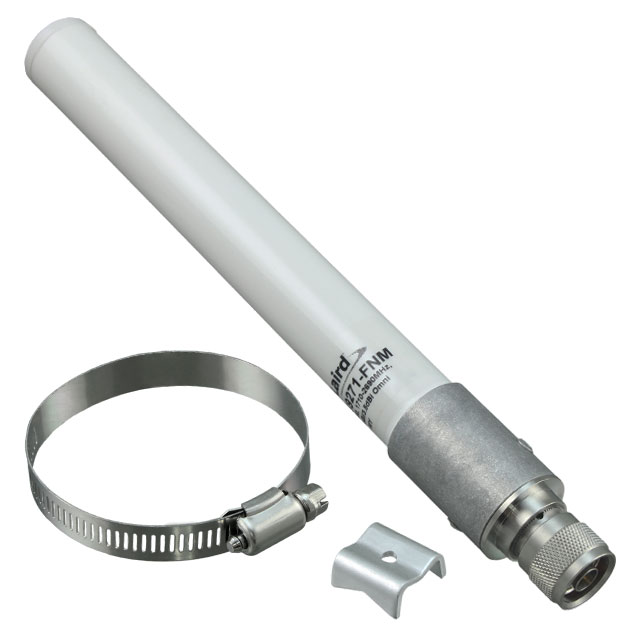

The Laird OC69271-FNM antenna is a multi-band omnidirectional antenna with N Male connector that covers the domestic LTE700 / Cellular / PCS / AWS / MDS, WiMAX 2300/2500, and global GSM900 / GSM1800 / UMTS / LTE2600 bands. The antenna can be used in both indoor and outdoor applications. It comes complete with mast mounting hardware and includes an ultraviolet (UV) stable radome enclosure.

Gain dBd

1.35 dBd

Gain dBi (dBi)

1.5 dBi, 3.5 dBi

RF Connectors

N Male

Polarization

Linear, Vertical

Specific Frequency

698-960 MHz, 1710-1990 MHz, 1920-2170 MHz, 2100-2500 MHz, 2500-2690 MHz

Vertical Beamwidth (Deg)

81, 75, 100

Maximum VSWR

2.5:1, 2.0:1

Connector Placement

Bottom

Frequency Band

LTE Multi-Band
