Description
Description
Manufacturer
Times Microwave
Product Description

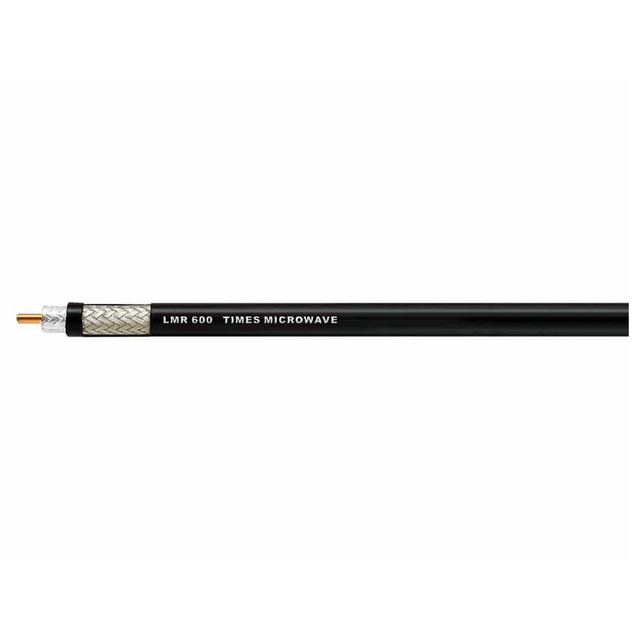

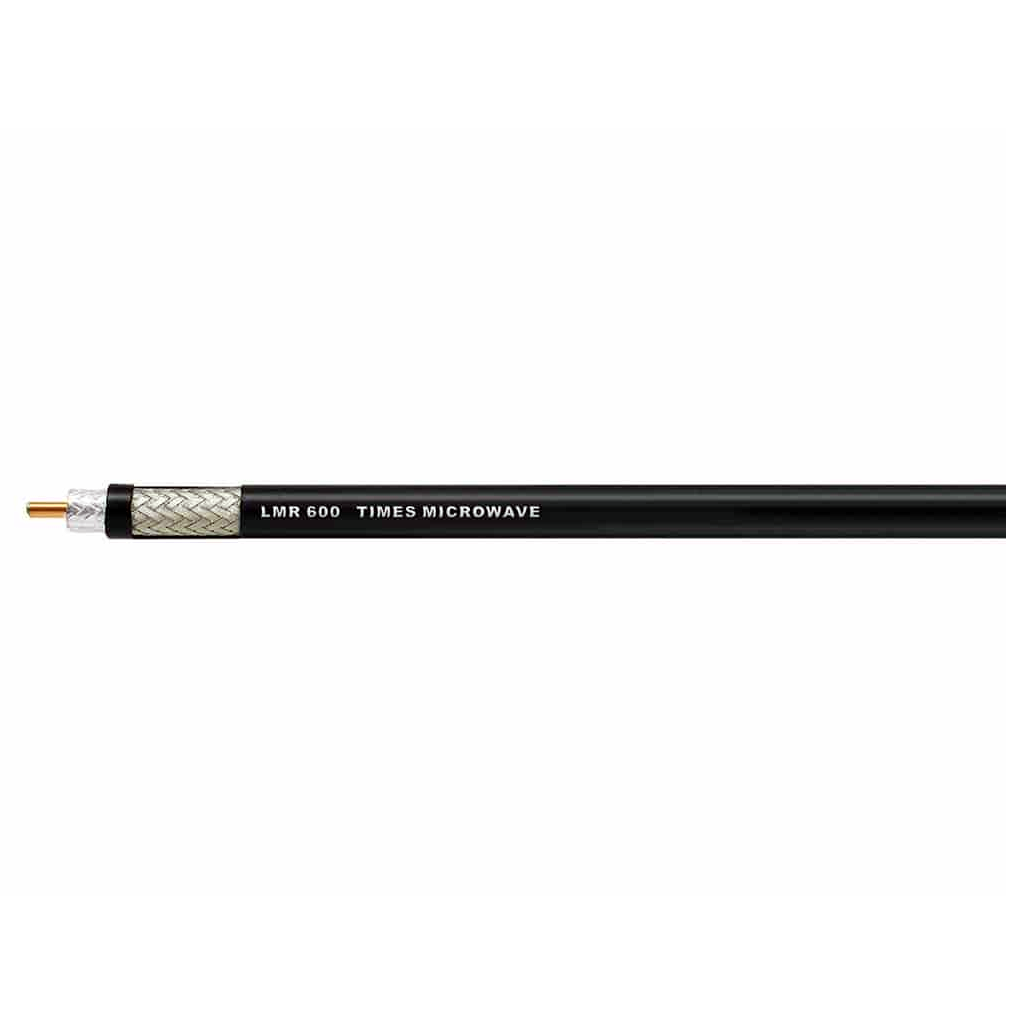

LMR®-600 Foam Cable
Cable Type
Foam
Impedance
50 Ohms
Maximum Frequency
9.3 GHz
VOP.
87%
Peak Power (W)
40 kW
DC Resistance (ctr/shld) Ohms
0.53/1.20
Capacitance
23.4 pF/Ft
Insulation
.058 uH/Ft
Outer Conductor
Tape & TC Braid
Inner Conductor
Copper Clad Aluminum (Solid)
Diameter Over Jacket
0.590 in.
Min. Bending Radius
1.50 in.
Bending Moment (ft lbs)
2.75 ft. lbs.
Weight Per Foot
.13 lbs.
Tensile Strength
350 lbs.
Flat Plate Crush Strength
60 lbs/in.
Losses Shown are based on 100 Foot Length
Atten @ 30 MHz
0.422 dB
Atten @ 50 MHz
0.547 dB
Atten @ 150 MHz
0.964 dB
Atten @ 450 MHz
1.720 dB
Atten @ 824 MHz
2.380 dB
Atten @ 894 MHz
2.490 dB
Atten @ 960 MHz
2.590 dB
Atten @ 1700 MHz
3.57 dB
Atten @ 1920 MHz
3.82 dB
Atten @ 2000 MHz
3.90 dB
Avg Power @ 30 MHz
5.50 kW
Avg Power @ 50 MHz
4.20 kW
Avg Power @ 450 MHz
1.30 kW
Avg Power @ 800 MHz
1.00 kW
Avg Power @ 894 MHz
0.93 kW
Avg Power @ 960 MHz
0.89 kW
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
