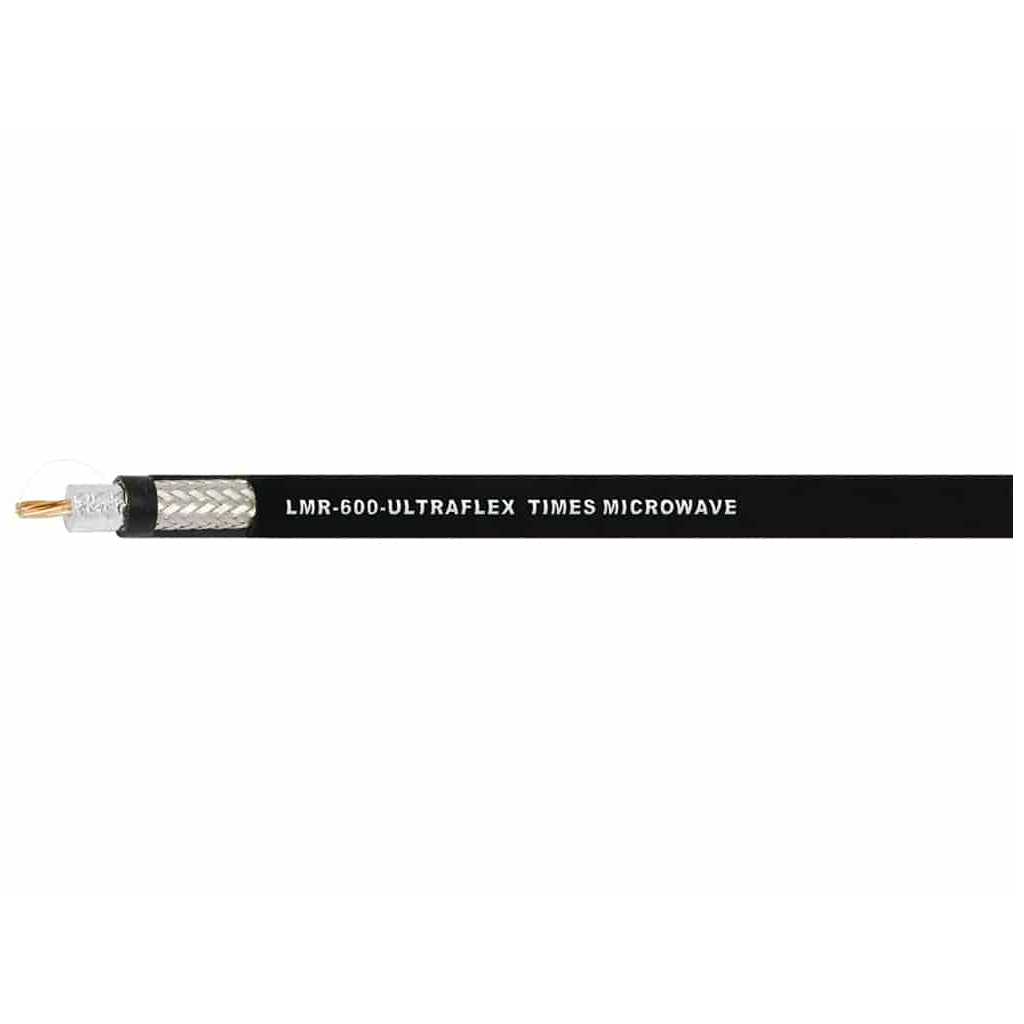

Times Microwave LMR-600UF
Regular price
$439
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
Times Microwave
Product Description
LMR®-600UF 1/2" Ultraflex
Cable Type
1/2" Ultraflex LMR®
Impedance
50 Ohms
Maximum Frequency
9.3 GHz
VOP.
87%
Peak Power (W)
40 kW
DC Resistance (ctr/shld) Ohms
0.53/1.20
Capacitance
23.4 pF/Ft
Insulation
.058 uH/Ft
Outer Conductor
Tape & TC Braid
Inner Conductor
Copper (Stranded)
Diameter Over Jacket
0.590 in.
Min. Bending Radius
1.50 in.
Bending Moment (ft lbs)
2.75 ft. lbs.
Weight Per Foot
.16 lb/ft
Tensile Strength
350 lbs.
Flat Plate Crush Strength
45 lbs/in.
Losses Shown are based on 100 Foot Length
Atten @ 30 MHz
0.51 dB
Atten @ 50 MHz
0.66 dB
Atten @ 150 MHz
1.16 dB
Atten @ 450 MHz
2.06 dB
Atten @ 824 MHz
2.86 dB
Atten @ 894 MHz
2.99 dB
Atten @ 960 MHz
3.11 dB
Atten @ 1700 MHz
3.57 dB
Atten @ 1920 MHz
3.82 dB
Atten @ 2000 MHz
3.90 dB
Avg Power @ 30 MHz
4.60 kW
Avg Power @ 50 MHz
3.50 kW
Avg Power @ 450 MHz
1.10 kW
Avg Power @ 800 MHz
0.80 kW
Avg Power @ 894 MHz
0.77 kW
Avg Power @ 960 MHz
0.74 kW
Sold By
Per Foot (Note - When ordering) 1 unit sold = 1 foot, 10 units sold = 10 feet, 50 units sold = 50 feet, etc.
Warranty
5 Years
