Description
Description
Manufacturer
CommScope
Model #
400BPTR-C-CR
Product Description

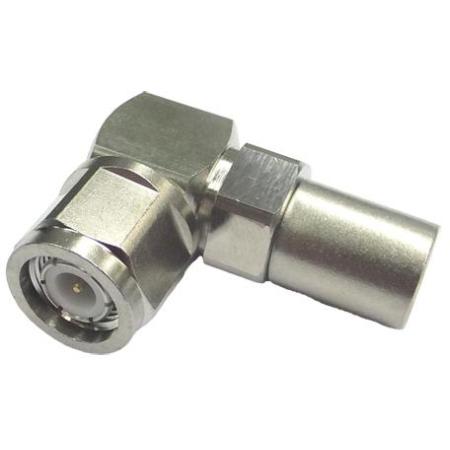

CommScope's 400BPTR-C-CR TNC Male right angle connector for CNT-400 braided cable. 0 - 6000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Gold plated inner contact. Crimp outer attachment, Captivated inner attachment. Designed, manufactured and/or distributed under ISO 9001:2015
RF Connector
RA TNC Male
RF Impedance
50 Ohms
RF Connector Body Style
Right Angle
Low PIM
No
Body Attachment
Crimp
Body Material
Tri-Metal Plated Brass
Center Pin Type
Captivated
For Cable
CNT-400
Frequency Range
0-6000 MHz
Pieces/UG
1
Material (Pin)
Gold
Max Voltage/Pwr
500
