Commscope CT-10-TUW-43-I6

MPN CT-10-TUW-43-I6SKU 15308

10 dB tapper for 340-6000 MHz with 4.3-10 female connectors, rated 300W average

Regular price $21495
Documents

Key Specifications

Frequency
340-6000 MHz
Bands
Multi-Band
Frequency Band
UHF LMR Low (380-430 MHz), UHF LMR (450-470 MHz), UHF T-Band (470-512 MHz), 700 MHz Public Safety (769-805 MHz), 800 MHz LMR (806-869 MHz), 900 MHz LMR (896-940 MHz), 4.9 GHz Public Safety, Cellular 600 MHz, Cellular 700 MHz, Cellular 700 MHz Upper, Cellular 850 MHz, Cellular AWS (1700/2100 MHz), Cellular PCS (1900 MHz), Cellular WCS (2.3 GHz), Cellular 2.5 GHz, Cellular 3.45 GHz, CBRS (3.5 GHz), Cellular C-Band (3.7-3.98 GHz), Wi-Fi 5 GHz

Product details

Manufacturer
CommScope
Model #
CT-10-TUW-43-I6
Product Description

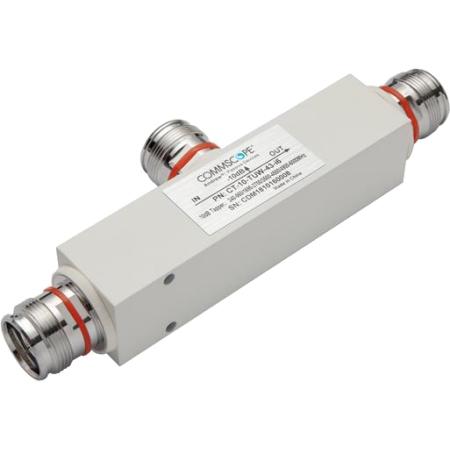

CommScope's CT-10-TUW-43-I6 340 – 6000 MHz tapper in white. 4.3-10 Female, 50 Ohm, 10 dB with operating frequency bands of 340 – 960 MHz, 1695 – 2700 MHz, 3500 – 4500 MHz, and 4900 – 6000 MHz. 3 kW peak power, 300 W average power, and 200 W reflected power. The coupling nut proof torque is 7 N-m | 61.955 in lb.

This tapper has an operating temperature of -31 degrees F to +185 degrees F with relative humidity up to 100 percent under the ingress protection IEC 60529:2001, IP67 test method.

Used for indoor and outdoor applications. Compliant with RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015

Item Width
1.693 in
Item Height
0.984 in
RF Connectors
4.3-10 Female
Item Length
5.551 in
Maximum Power (W)
300W
Frequency Range
340-6000 MHz
Nominal Coupling
10dB
